Compact 12 DX
Compact 12 DX
Compact 12 DX

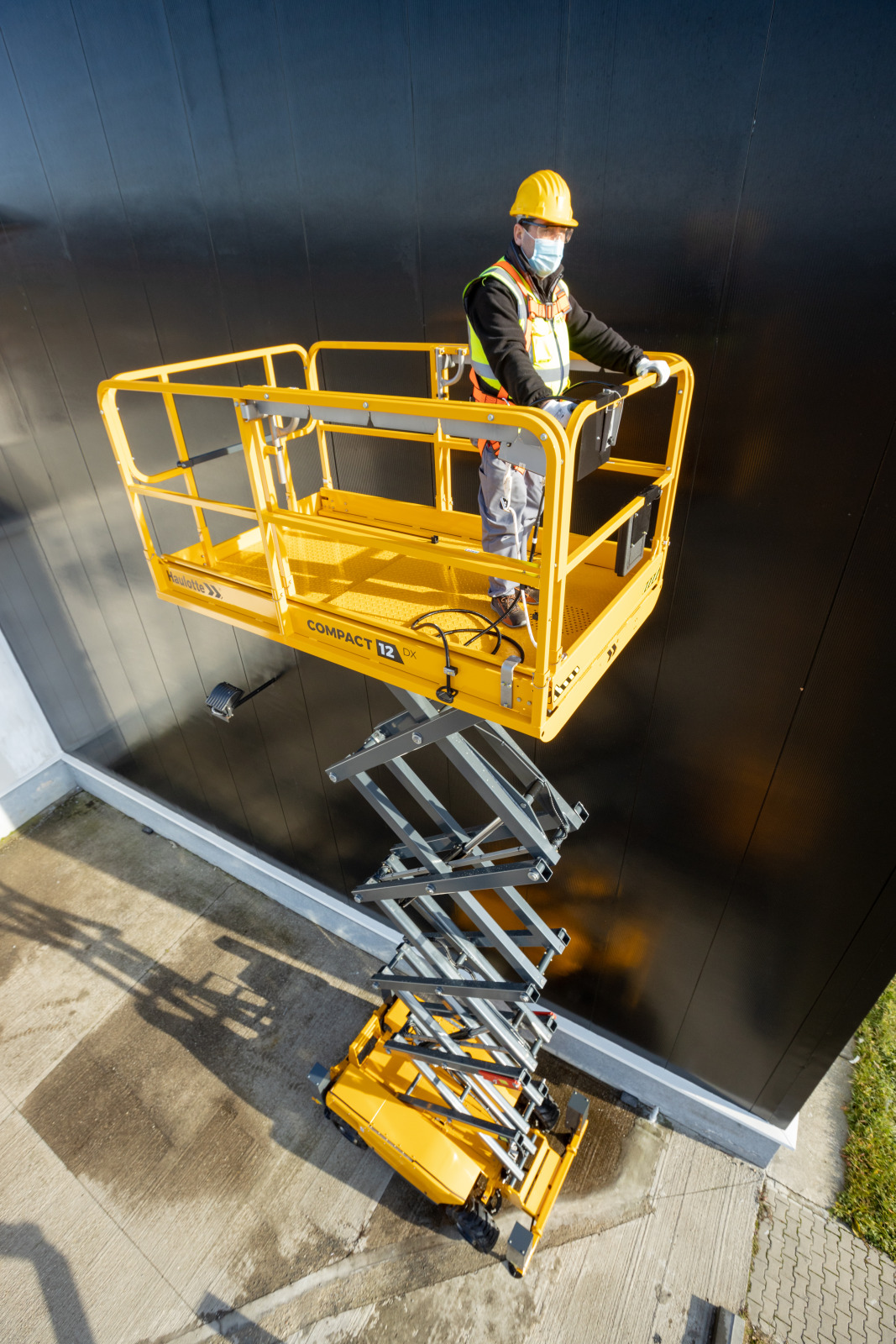

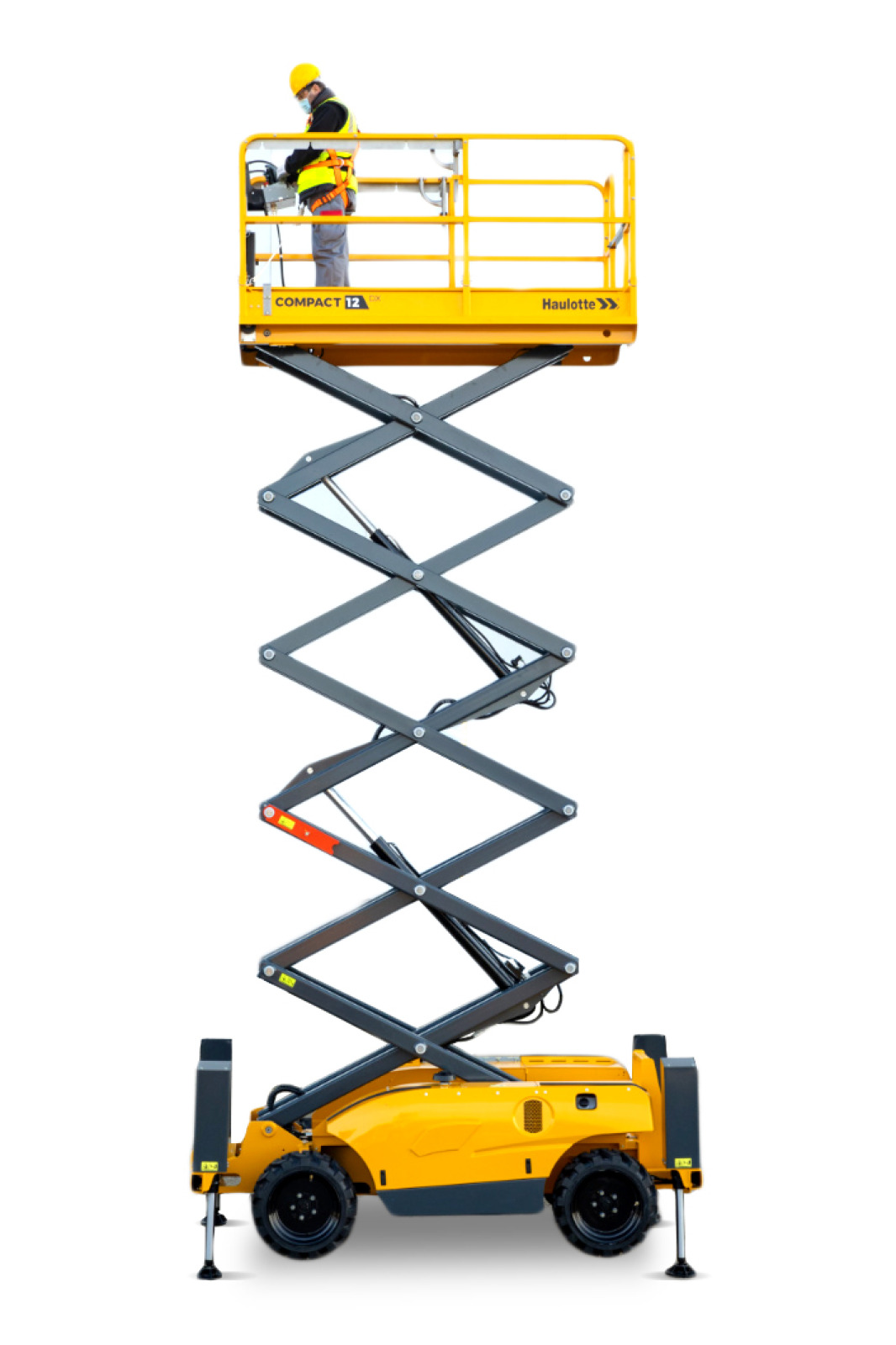

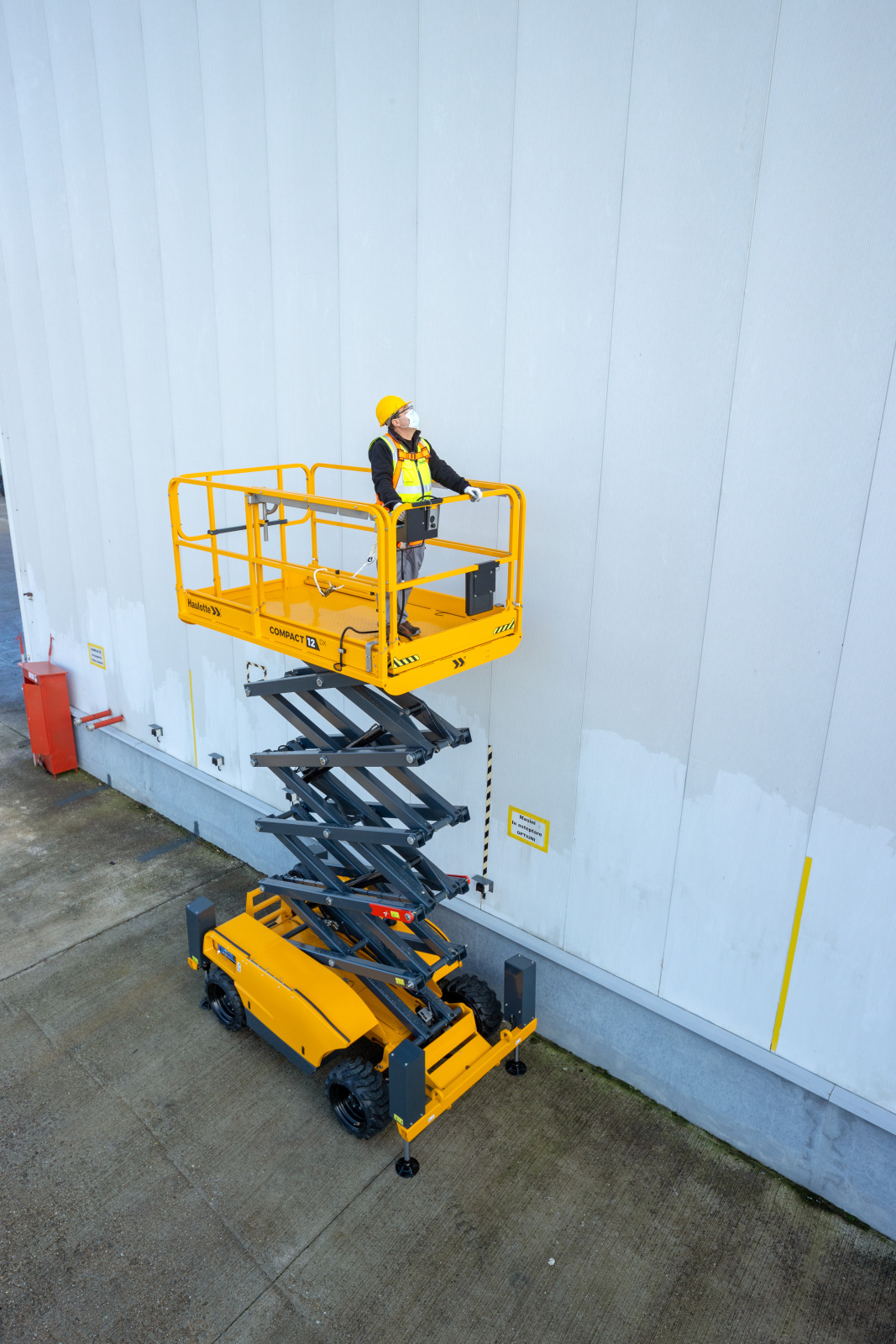

Scissor lifts Compact 12 DX

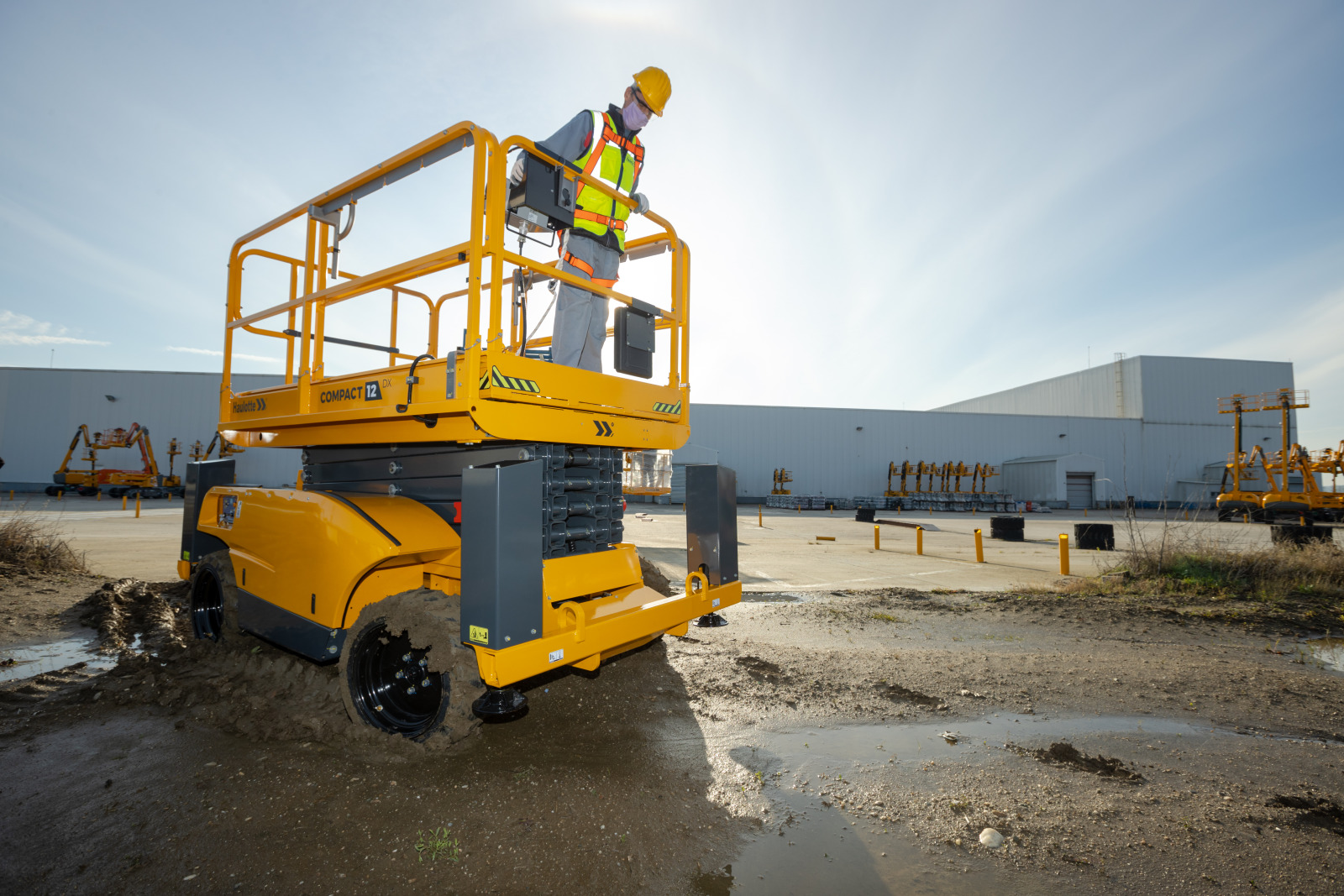

With their high clearance capabilities, Compact 12 DX rough terrain scissor lifts work in the most rugged terrain. With a load capacity of 450kg and 3 operators, they can handle the most challenging jobs. The stabilisers allow you to work even on very uneven ground.

Product characteristics

Outdoor

Outdoor

Uneven ground

Uneven ground

Diesel

Diesel

Application fields

Finishings

Finishings

Building works

Building works

Maintenance & Restoration

Maintenance & Restoration

Sporting & other events

Sporting & other events

Compact 12 DX

Presentation

  • Outstanding rough terrain driving features
  • Robust and easy to maintain
  • Exceptional productivity

Specifications

Outstanding rough terrain driving features

Outstanding rough terrain driving features

  • 4 wheel drive
  • Automatic differential lock
  • Excellent gradeability (40 %)
  • Ground clearance of 28 cm
Robust and easy to maintain

Robust and easy to maintain

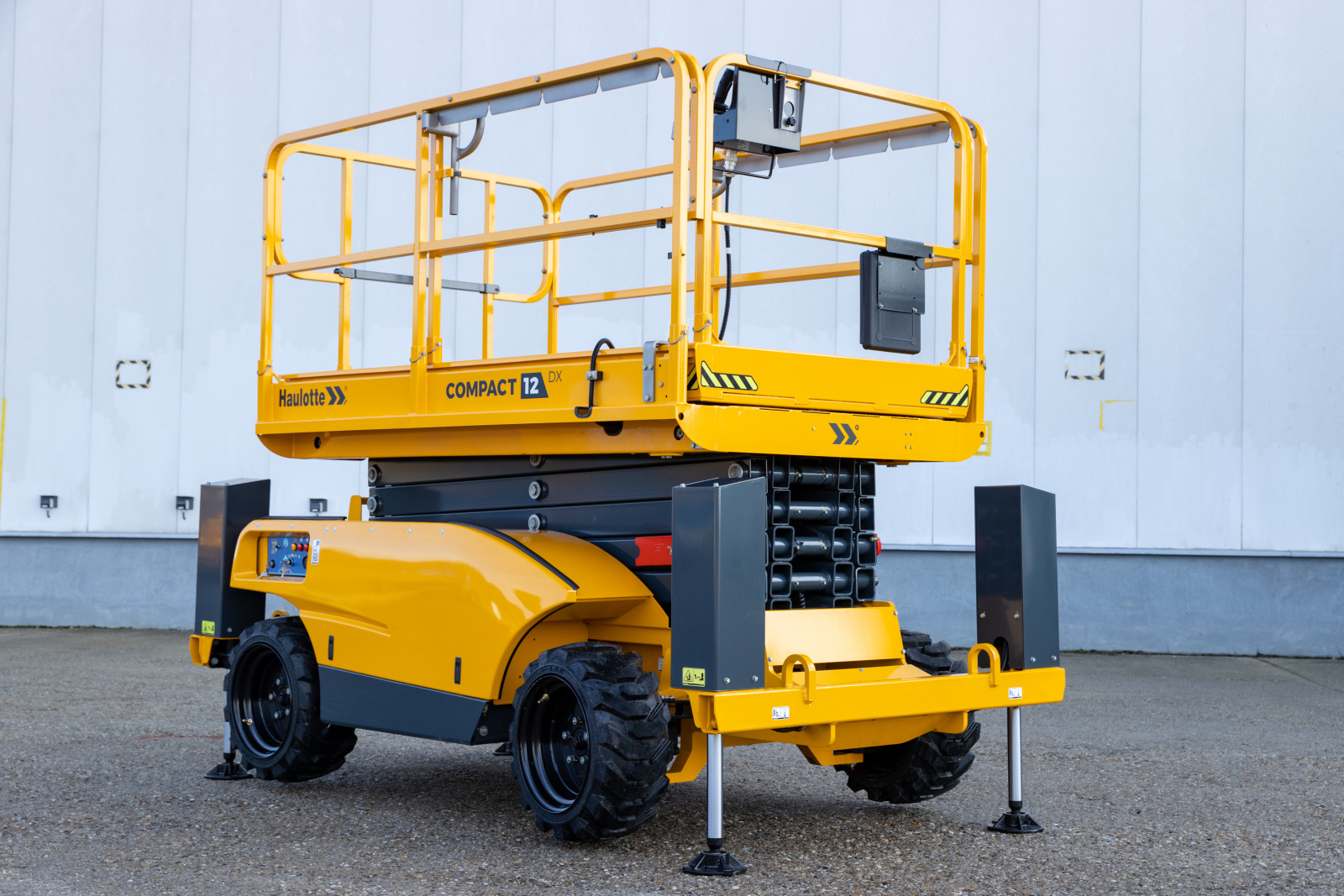

  • Outriggers positioned within the machine footprint

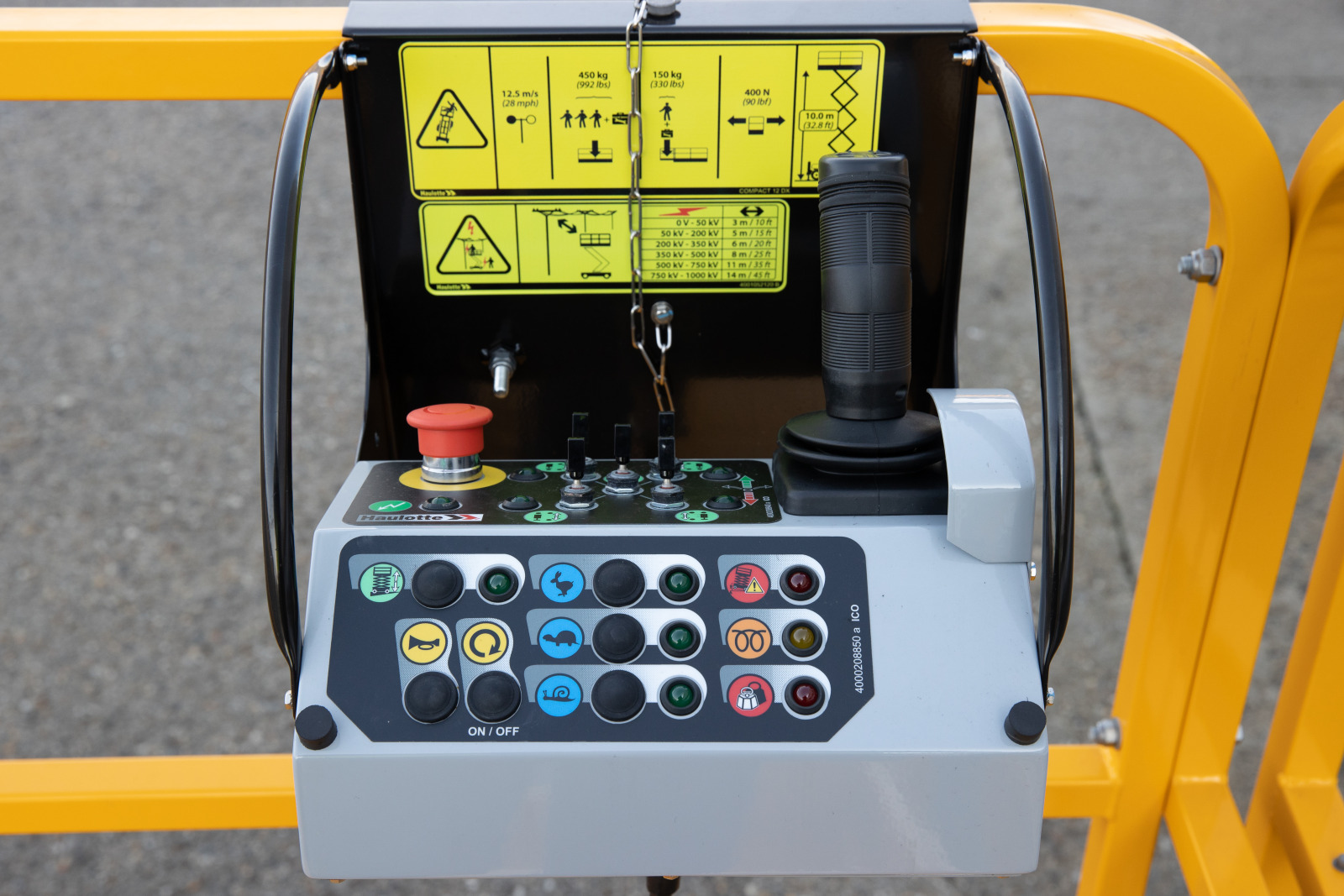

  • Durable and reliable upper control box
  • Optimized accessibility to components
  • Built-in diagnostic tool
Exceptional productivity

Exceptional productivity

  • Fully proportional controls
  • Narrow turning radius
  • One switch to deploy and retract 4 outriggers

Working height 12.06 m
Platform height 10.06 m
Lift capacity 450 kg (3 pers.)
Lift capacity on the extension 150 kg
Number of extensions 1
Platform length 2.45 m
Extended platform length 3.7 m
Platform extension length 1.2 m
Platform width 1.45 m
Platform size - extended 3.7 x 1.45 m
Storage height 1.7 m
Height - stowed 2.56 m
Width 1.78 m
Length 3.18 m
Wheelbase 1.84 m
Ground clearance 28 cm
Drive speed 0.6 - 5.5 km/h
Maximum drive height 8.15 m
Gradeability 40 %
Tilt alarm 3 °
Lift / lower speed 35 s / 51 s
Turning radius - outside 3.5 m
Tyres - foam-filled 26 x 12 - 16.5
Engine Kubota, 18.5 kW (Stage 5 in EU)
Hydraulic system capacity 75 l
Weight 3965 kg
Compact 12 DX
Compact 12 DX
Compact 12 DX

  • 4 wheel drive, 2 wheel steer
  • Brake release
  • Foam filled all terrain tyres
  • 1.2 m platform extension
  • Removable operator’s control box
  • 3° Tilt alarm
  • Automatic levelling outriggers
  • Horn
  • Hourmeter
  • 12 V - 70 Ah batteries
  • Hydraulic brakes
  • Manual platform lowering valve
  • Lanyard attachment points
  • Towing hooks
  • Side shields

  • Non marking tyres
  • 110 V power to the platform
  • Swing-door gate
  • Hydraulic generator 3.5 kW
  • Biodegradable oil
  • Cold Weather Package
  • Telematics ready
  • Motion alarm for movements and translation
  • Travel alarm
  • Rotating beacon
  • Working light
  • Foldable guard-rails
