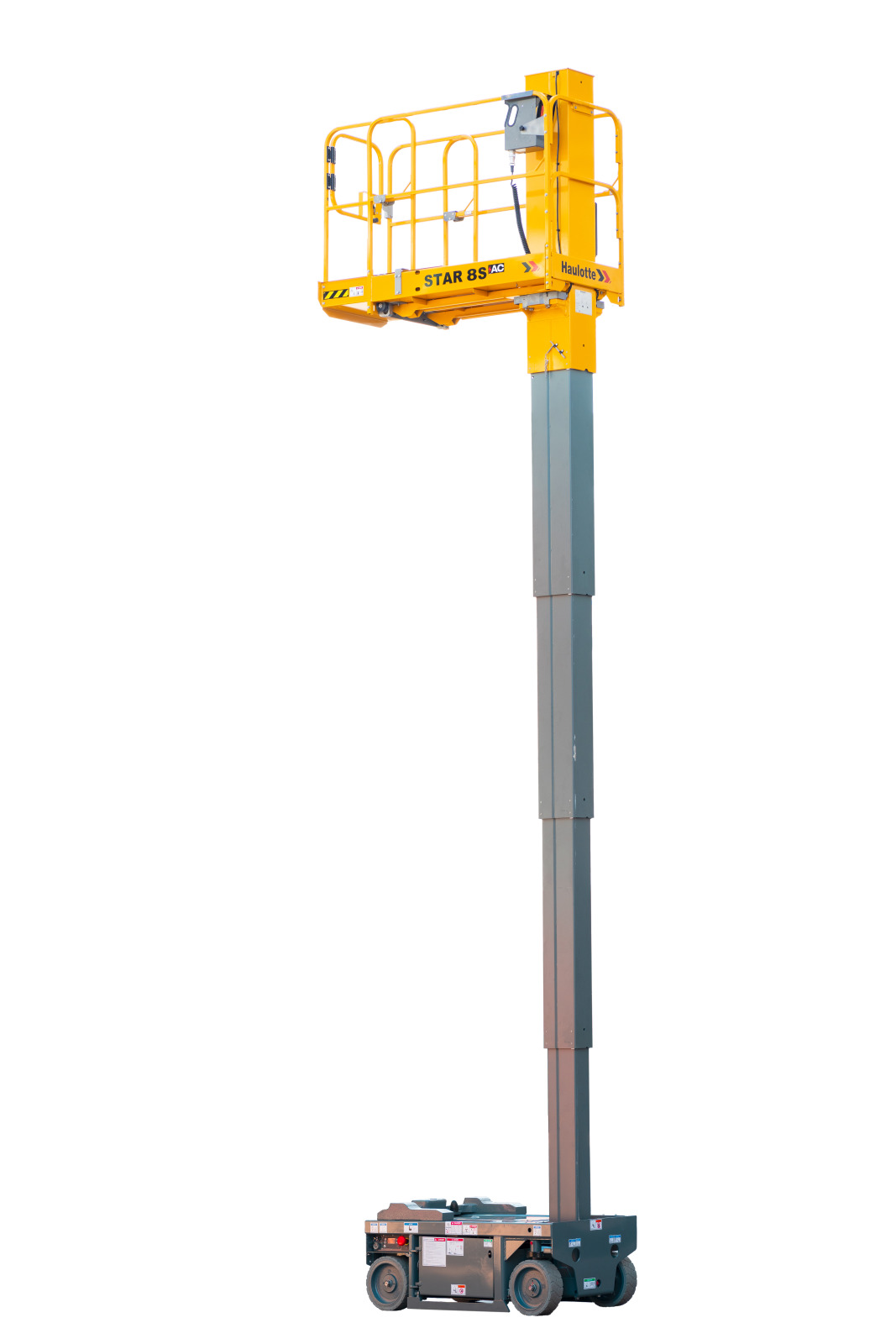

Vertical masts Star 8 S

Agile, robust, easy to use and maintain, STAR vertical masts are intended for use in multiple applications. The STAR range is equipped with asynchronous motors (AC) that combine proportionality and torque. Their narrow frames make them extremely easy to operate. Equipped with a platform extension, STAR 8S masts can reach over small obstacles up to 0.4 m.

Product characteristics

Indoor

Indoor

Even ground

Even ground

Electric

Electric

Application fields

Finishings

Finishings

Logistic / Retail / Industry

Logistic / Retail / Industry

Maintenance & Restoration

Maintenance & Restoration

Sporting & other events

Sporting & other events

Star 8 S

Presentation

  • Go everywhere
  • With the best value for money

Specifications

Go everywhere

Go everywhere

  • High precision driving and smoothness
  • Easy access to the platform: dedicated anti-slip step
  • Quick machine with mobile pothole protections
  • Intuitive control box with battery level indicator in platform

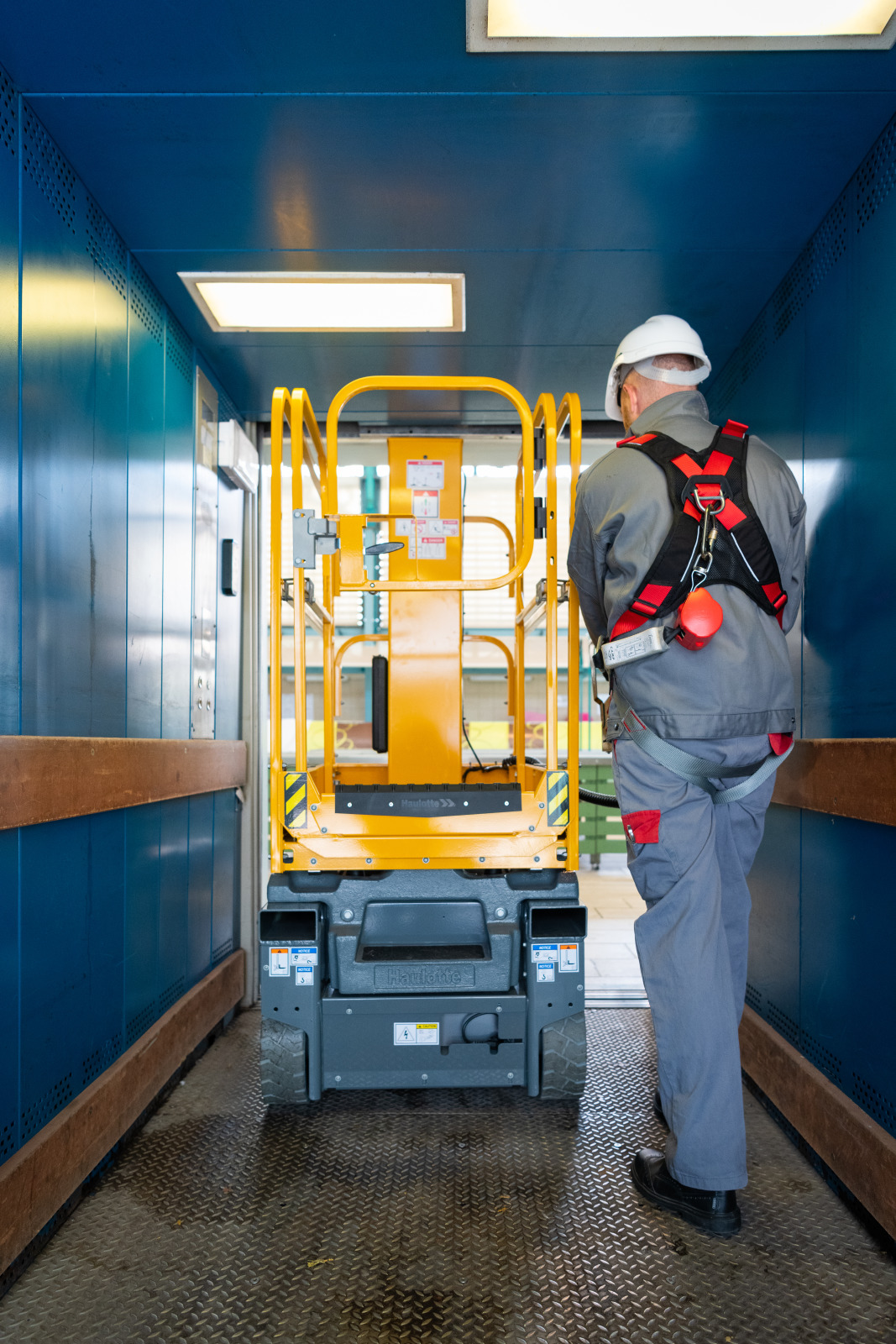

  • Smart transportability and lifting
  • Plateform extension deck: + 0,4 m
With the best value for money

With the best value for money

  • Haulotte Activ'Energy Management takes care of your batteries
  • 4-stage-cylinder mast: no chain, no cable
  • Minimal maintenance & downtime
  • Direct electric drive with maintenance-free AC motors (brushless)
  • Easy access to components (2 swing out trays)
  • Haulotte Activ'Screen (onboard diagnostic)

Working height 7.95 m
Platform height 5.95 m
Horizontal outreach 0.4 m extension
Lift capacity - inside 200 kg (1 Pers.)
Lift capacity - outside NA
Platform size 0.77 x 1.38 m
Platform size with extension 0.77 x 1.78 m
Length 1.4 m
Width 0.79 m
Height - stowed 1.98 m
Wheelbase 1.06 m
Ground clearance 6 cm
Drive speed proportional 0.5 - 4.5 km/h
Turning radius - outside 1.7 m
Tilt alarm 1,5° / 3°
Gradeability 25 %
Max driveable platf. height 5.95 m
Tyres - non marking 318 x 108
Power source 4 x 6 V - 180 Ah (C5)
Weight 1 150 kg
Hydraulic system capacity 9 l
Star 8 S
Star 8 S

  • Haulotte Activ'Energy Management: Smart CAN charger
  • Haulotte Activ'Screen
  • 24 V electric drive brushless AC motors (free maintenance)
  • 4 x 6 V - 180 Ah batteries
  • Battery level indicator
  • Fork lifting pockets
  • Hoisting and lifting eyes
  • Door entry gate with lock
  • Platform extension deck: + 0,4 m
  • Mobile pothole protection
  • 2 rear driving wheels
  • 2 front steering wheels
  • Non-marking tires
  • Electric brake release
  • Hourmeter
  • Horn
  • Travel alarm
  • Emergency stop
  • Lowering system
  • 2 control boxes at basket and ground levels
  • Mobile upper control box
  • Drive speed selector on upper control box
  • 2 towing hooks

  • Haulotte Activ'Energy Management: automatic or manual battery waterfilling systems
  • Telematics ready
  • Maintenance-free batteries
  • Flashing light
  • Power to platform
  • Tool tray
  • Upper control box cover
  • Ground-fault circuit interrupter 30 mA
  • Cold weather hydraulic oil
  • Biodegradable hydraulic oil
