HA12 CJ+
HA12 CJ+
HA12 CJ+
HA12 CJ+

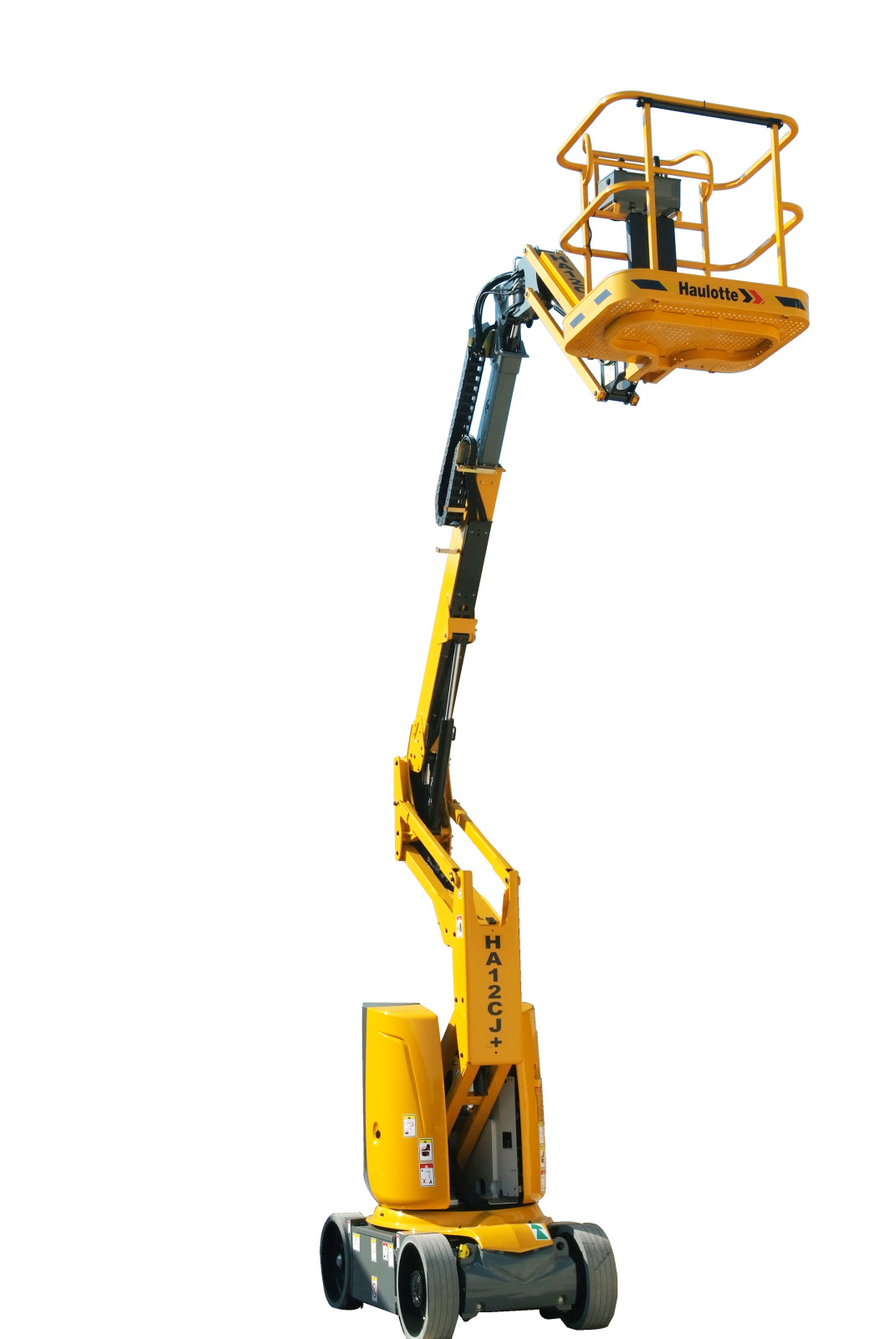

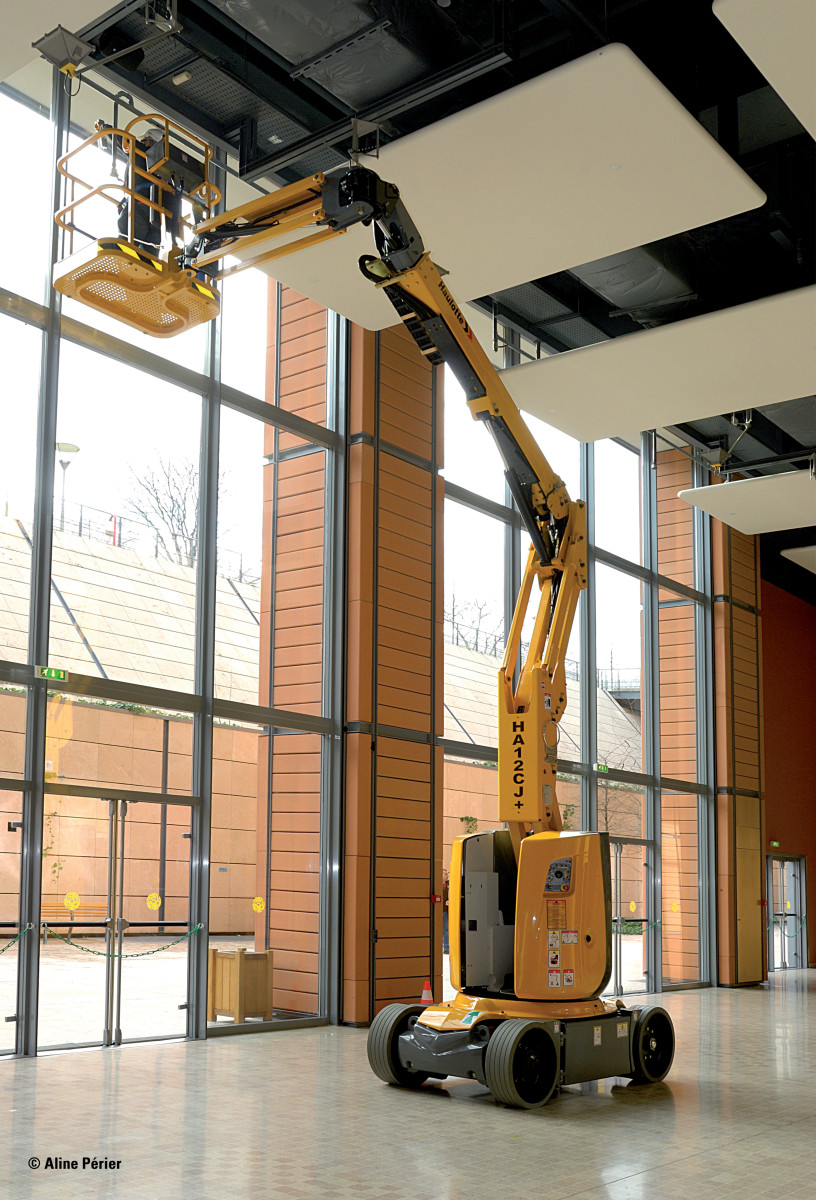

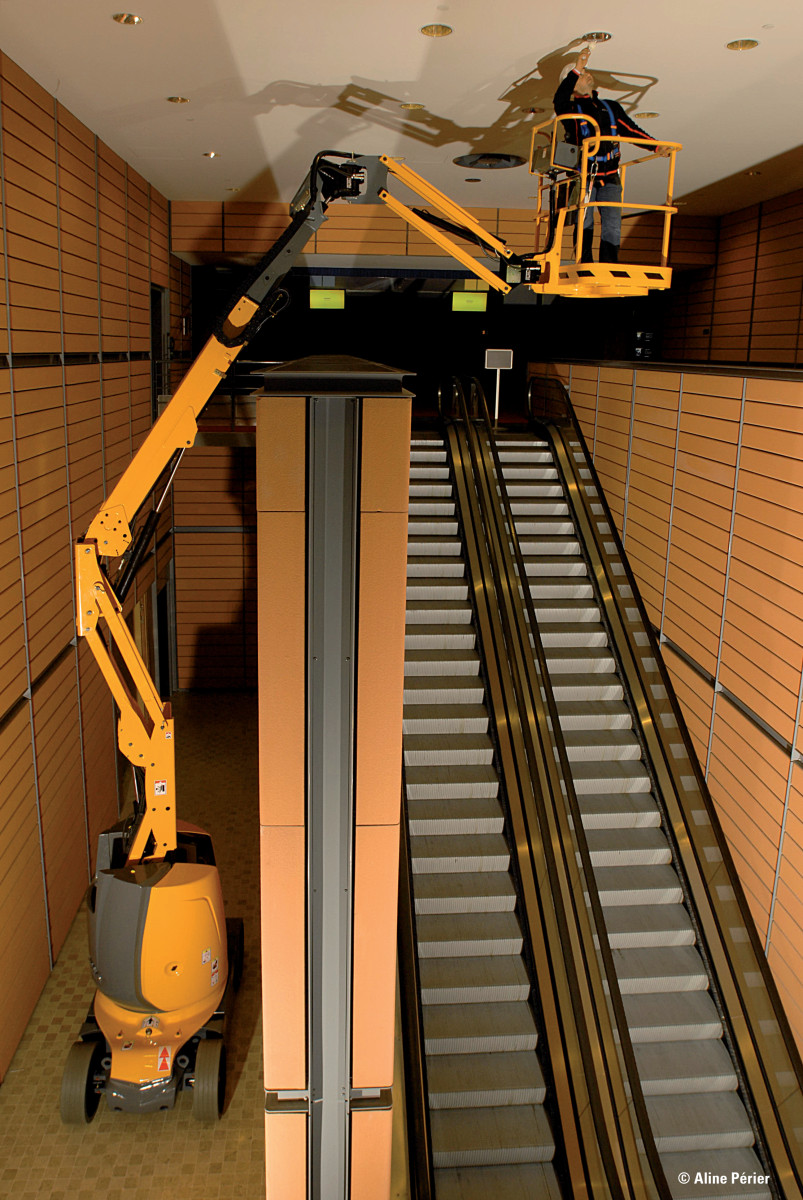

Haulotte articulating booms are versatile and ensure operator safety. Extremely flexible, their boom arm with a pivot point giving them the ability to extend over obstacles to reach the most challenging work areas. Thanks to its compact design and zero tailswing, the HA12 CJ+ offers excellent maneuverability in the tightest spaces. The HA12CJ+ offers one of the best offset on the market.

Product characteristics

Indoor / Outdoor

Indoor / Outdoor

Even ground

Even ground

Electric

Electric

Application fields

Finishings

Finishings

Logistic / Retail / Industry

Logistic / Retail / Industry

Maintenance & Restoration

Maintenance & Restoration

Sporting & other events

Sporting & other events

HA12 CJ+

Specifications

Excellent manoeuvrability in the tightest spaces

Excellent manoeuvrability in the tightest spaces

  • Drive and turntable rotation
  • Tight turning radius
  • Zero tailswing
  • Compact stowed height passes through standard doorways
  • 1.20m width
Optimized productivity

Optimized productivity

  • Proportional and simultaneous movements
  • Suitable for inside and outside use
  • Long working cycles

Working height 11.68 m
Platform height 9.68 m
Horizontal outreach 7.22 m
Up and over clearance 4.74 m
Lift capacity 230 kg (2 pers.)
Platform size 1.14 x 0.8 m
Length 5.64 m
Length – transport 4.2 m
Width 1.2 m
Height - stowed 1.99 m
Height - transport 2.6 m
Tailswing 0 cm
Vertical jib rotation 132.2° (+63.5/-68.7)
Horizontal jib rotation 180° (-90/+90)
Platform rotation 180° (-90/+90)
Turntable rotation 355 °
Wheelbase 1.65 m
Ground clearance 10.7 cm
Tilt 3 °
Proportional drive speed 0.68 - 6 km/h
Maximum wind speed rating 45 km/h
Gradeability 25 %
Turning radius - outside 3.65 m
Tyres - non marking 598x190
Energy 48V - 320 Ah (C5)
Weight 7 110 kg
HA12 CJ+
HA12 CJ+

  • 2 wheel drive
  • 2 wheel steer
  • Solid non-marking tyres
  • Ergonomic control panels
  • Mechanical turret slewing lock
  • Automatic platform levelling
  • Load Management System in the platform
  • Tilt sensor
  • Horn
  • Hourmeter
  • Emergency hand pump
  • On board battery charger 48V - 50A
  • Deep cycle batteries
  • Battery charge indicators on both control panels
  • Towing hooks and lifting eyes

  • Electric socket in the platform
  • Air line to platform
  • Self-closing swing door
  • Circuit-breaker
  • Traction batteries
  • Telematics ready
  • Fluorescent tube caddy
  • Orange safety cones holder
  • Flashing light
  • Working light
