HA12 IP
HA12 IP
HA12 IP

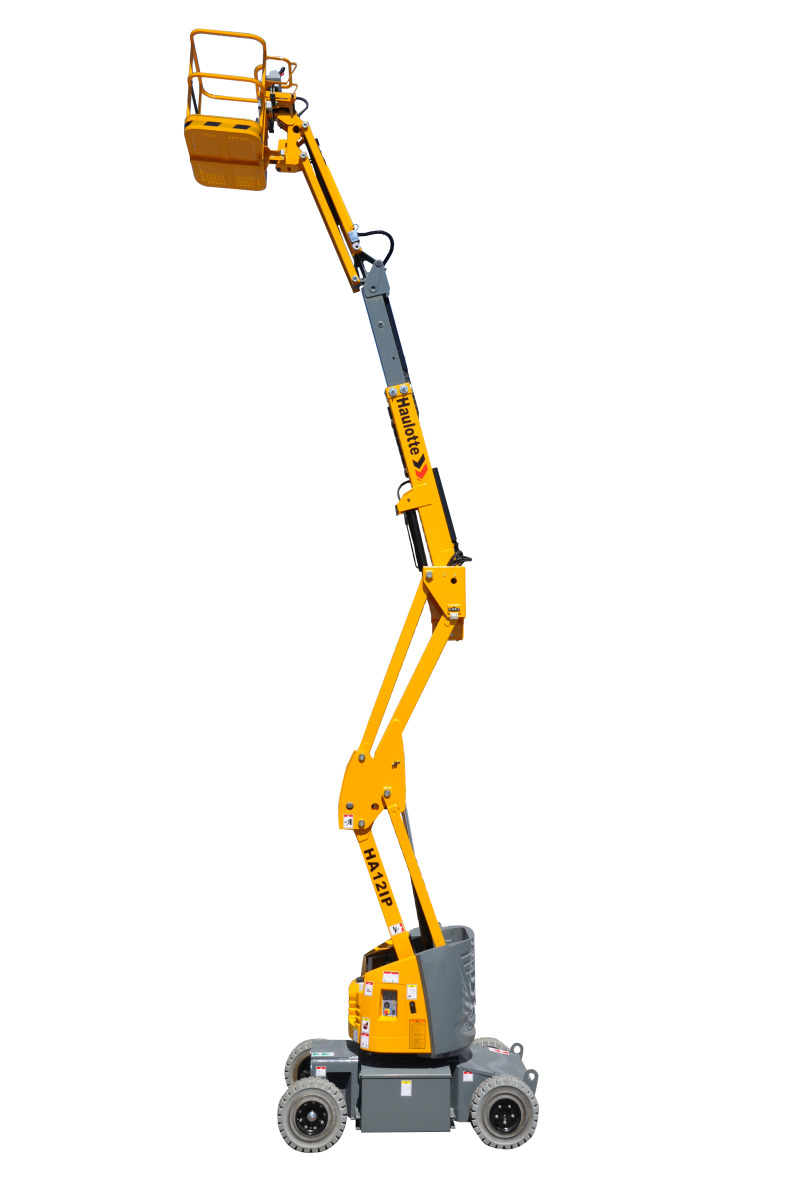

Haulotte HA12 IP electric articulated boom is versatile and ensure operator safety. Extremely flexible,HA12 IP boom arm giving this the ability to extend over obstacles to reach the most challenging work areas. Designed for industrial environments, the HA12 IP electric articulated boom operates both indoors and outdoors on stabilized ground.

Product characteristics

Indoor / Outdoor

Indoor / Outdoor

Even ground

Even ground

Electric

Electric

Application fields

Finishings

Finishings

Logistic / Retail / Industry

Logistic / Retail / Industry

Maintenance & Restoration

Maintenance & Restoration

Sporting & other events

Sporting & other events

HA12 IP

Specifications

Excellent manoeuvrability in the tightest spaces

Excellent manoeuvrability in the tightest spaces

  • Compact size with 1.35 m width
  • Stowed height can pass through a standard doorway
  • 136° (+ 64° / - 72°) fly jib range of motion
  • Tight turning radius (2.4 m)
Optimal productivity and comfort

Optimal productivity and comfort

  • 6.5 m outreach
  • Long working cycles
  • Full proportional controls
Robust, reliable and easy to maintain

Robust, reliable and easy to maintain

Working height 12 m
Platform height 10 m
Horizontal outreach 6.5 m
Up and over clearance 5.3 m
Lift capacity - inside 230 kg (2 pers.)
Lift capacity - outside 230 kg (2 pers.)
Platform size 1.2 x 0.8 cm
Length 5.4 m
Length – transport 4.8 m
Width 1.35 m
Height - stowed 2 m
Height - transport 2.6 m
Tailswing 0 cm
Vertical jib rotation 136° (+ 64 / - 72)
Platform rotation 170° (+ 80 / - 90)
Turntable rotation 355 °
Wheelbase 1.8 m
Ground clearance 16 cm
Tilt 3 °
Proportional drive speed 0.7 - 4.5 km/h
Maximum wind speed rating 45 km/h
Gradeability 25 %
Turning radius - outside 2.4 m
Tyres - non marking 6 x 12''
Energy 48 V - 345 Ah (C5)
Weight 5 900 kg
HA12 IP
HA12 IP

  • 2 wheel drive and steer
  • Brake release
  • Non marking tyres
  • Sensitive control box
  • Slewing block pin
  • Horn
  • Hourmeter
  • Emergency hand pump
  • Semi-traction battery
  • 48 V - 50 A battery charger
  • Battery charge indicator
  • Towing hooks and lifting eyes

  • Large basket option 1.4 m x 0.8 m (lift capacity 200 kg)
  • Power to platform
  • Air line to platform
  • Biodegradable oil
  • 360 Ah traction batteries
  • Centralised battery filling
  • Travel alarm
  • Flashing light
