Presentation
- Eco-friendly
- Versatile. Works anywhere, anytime
- Optimal productivity
- Extend duty cycle, increase productivity
Specifications
Eco-friendly
- Electric drive and operations
- Clean and silent operation designed for use in even the most sensitive work areas

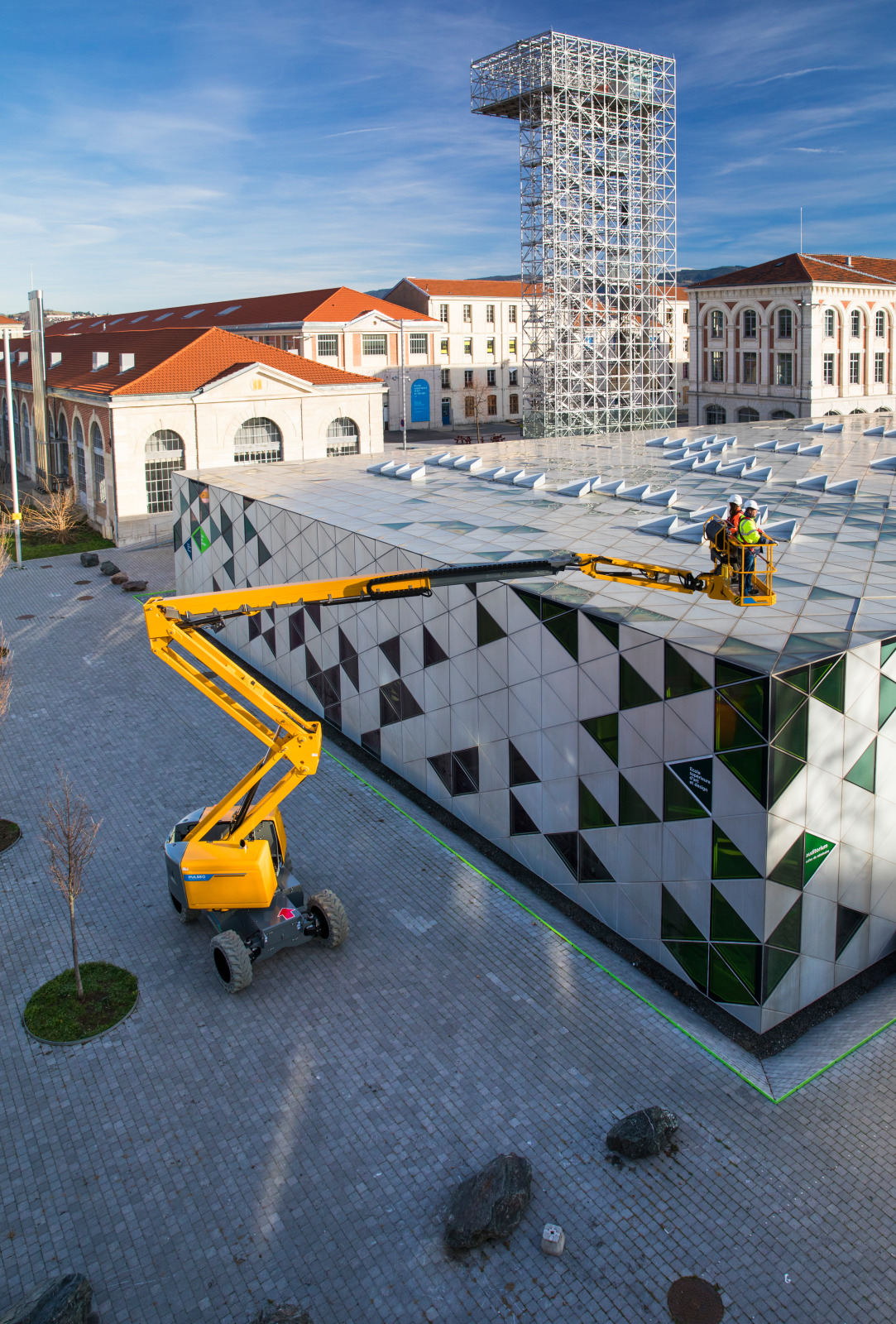

Versatile. Works anywhere, anytime

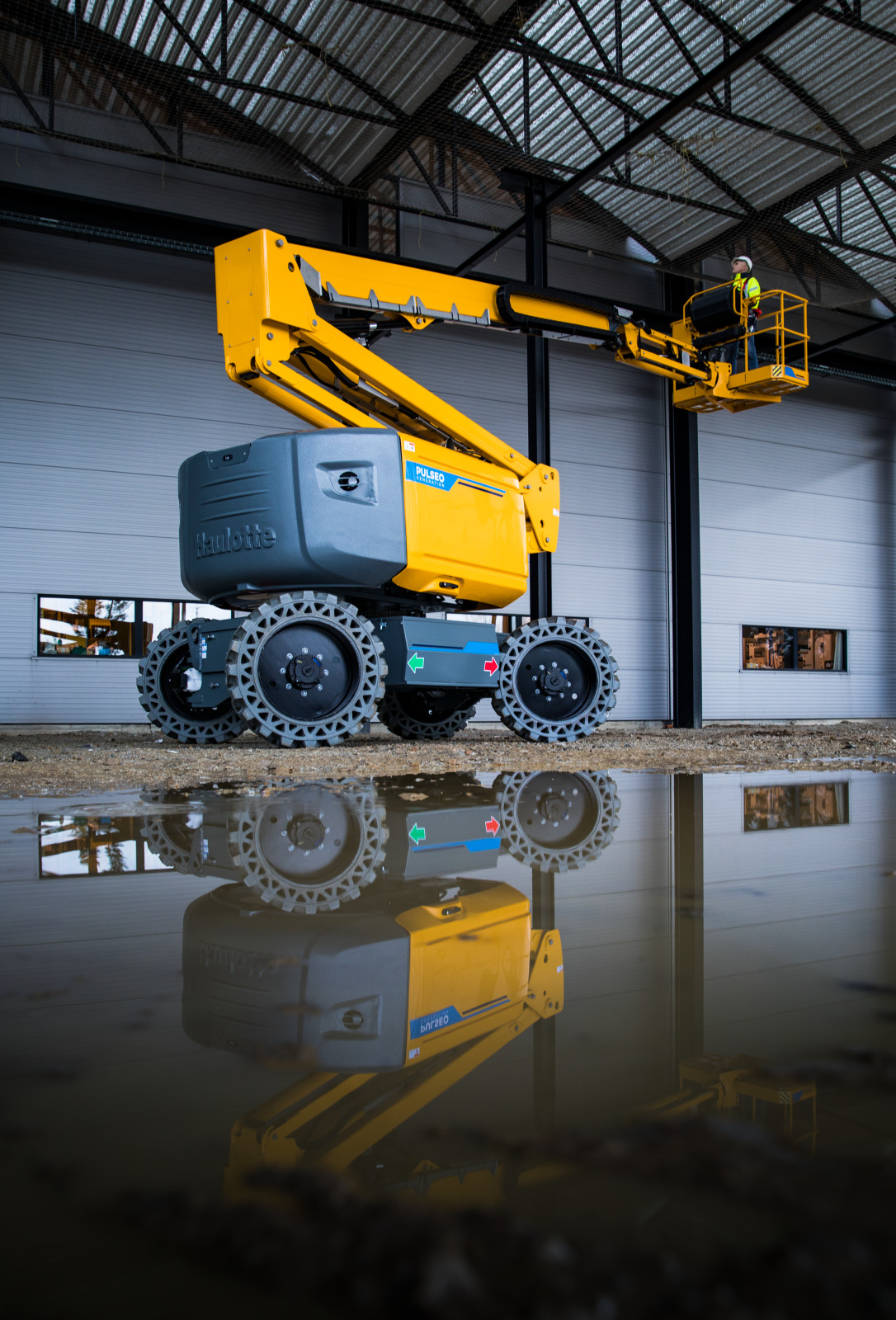

- Non-marking tyres for indoor use

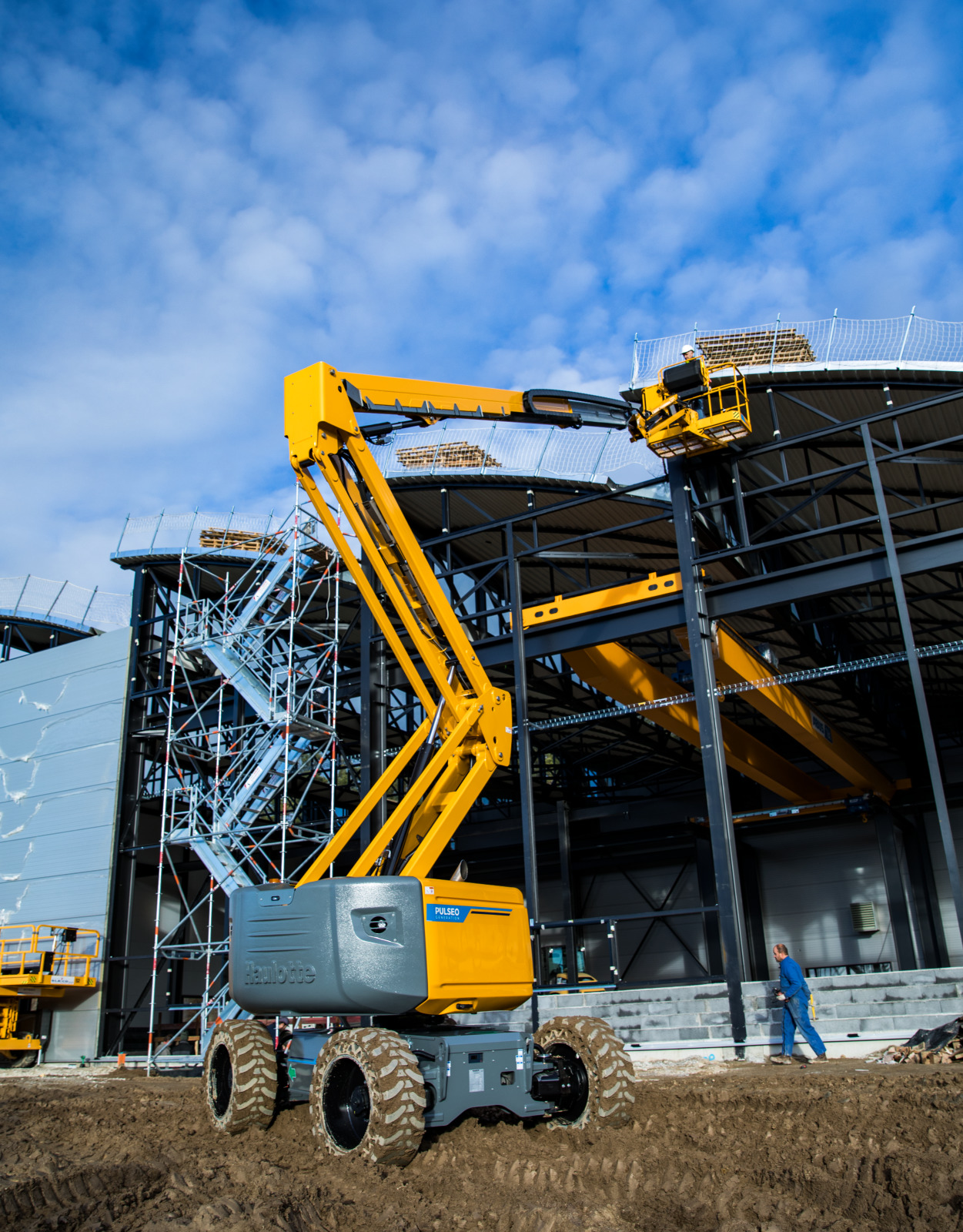

- 4 wheel drive for rough terrain use
- Work quietly without work site disruptions
- Non-marking tyres for indoor use
Optimal productivity
- 360° continuous rotation turret (PRO model)
- Quick, proportional and simultaneous movements
- Platform load capacity 250 kg
Extend duty cycle, increase productivity
- Power through a full work shift
- Built-in multi-voltage charger
- Low fuel consumption range extending engine
| Working height | 20.4 m |
| Platform height | 18.4 m |
| Horizontal outreach | 11.9 m |
| Up and over clearance | 8.5 m |
| Lift capacity | 250 kg (2 pers.) - option 350 kg |
| Platform size | 1.83 x 0.80 m |
| Length | 8.5 m |
| Width | 2.4 m |
| Height - stowed | 2.5 m |
| Storage / transport length | 6.1 m |
| Storage / transport height | 3 m |
| Tailswing | 41 cm |
| Platform rotation | 180° (+ 90° / - 90°) |
| Turntable rotation | 360° continuous |
| Wheelbase | 2.5 m |
| Ground clearance | 44.5 cm |
| Tilt | 4 - option 6 |
| Proportional drive speed | 0.7 - 5 km/h |
| Maximum wind speed rating | 45 km/h |
| Gradeability | 45 % |
| Tyres - solid rough terrain | 1025 x 365 mm |
| Turning radius - outside | 3.8 m |
| Weight | 9 785 kg |
| Batteries | 12 x 6 V - 435 Ah |
| Range extender | Kubota, 18.5kW (Stage 5 in EU) |
| Ground clearance - mini | 0 cm |
| Ground clearance - maxi | 0 cm |
| Ground clearance - mini | 0 cm |
| Ground clearance - maxi | 0 cm |
- Haulotte Activ'Lighting System
- Haulotte Activ'Shield Bar 2.0 (LE PRO model)
- Haulotte Activ'Screen
- Universal telematics plug
- Haulotte Activ'Energy Management: smart charger and centralized battery watering system (manual)
- 72 V battery pack (435 Ah)
- Battery charge indicator at upper and lower control boxes
- Multi-voltage charger (110 - 230 V) and integrated range extender (18.5 kW)
- 4 wheel drive: brushless AC motors at each wheel
- 4 wheel steer (LE PRO), 2 wheel steer (LE)
- Front oscillating axle
- Smooth and proportional movements
- Upper control box cover
- Tool tray
- Modular platform 1.83 x 0.80 m with drop bar entry gate
- AC power to platform (110 / 230 V)
- Swing out engine tray
- Sound and light alarm for tilt and load
- Travel alarm
- Rotating beacon
- Haulotte Activ'Shield Bar 2.0 (LE model)
- Large platform 2.44 x 0.91 m
- Side swing door entry gate
- Pipe rack kit
- Glazier kit
- Power to platform 110 / 230 V (female plug in the basket)
- Biodegradable hydraulic oil
- Cold weather kit
- Anti overspeed kit
- Air-line to platform
- Flashing light
- Haulotte Extra Reach: additional load and tilt capacity up to 350 kg and 6°
- FASTN, universal and active anchorage
- User Drive Assist
- Pedestrian Detection Assist
- High visibility kit
Haulotte innovates for your safety.
PULSEO, the Haulotte’s range of all-terrain electric mobile elevating work platforms
Lower energy costs and less air and noise pollution, all with optimal performance: that is the promise of the electrical architecture featured in PULSEO machinery.
