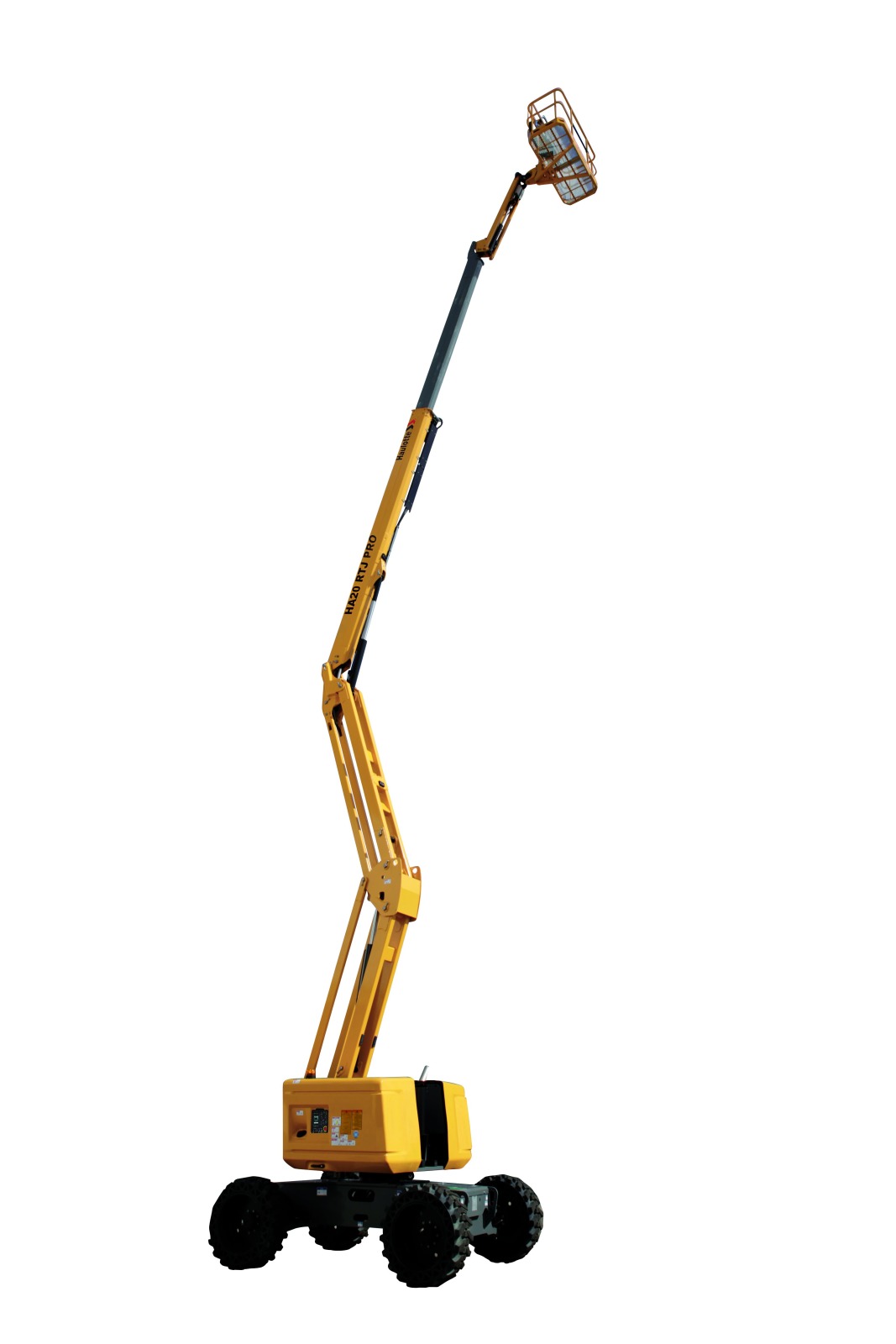

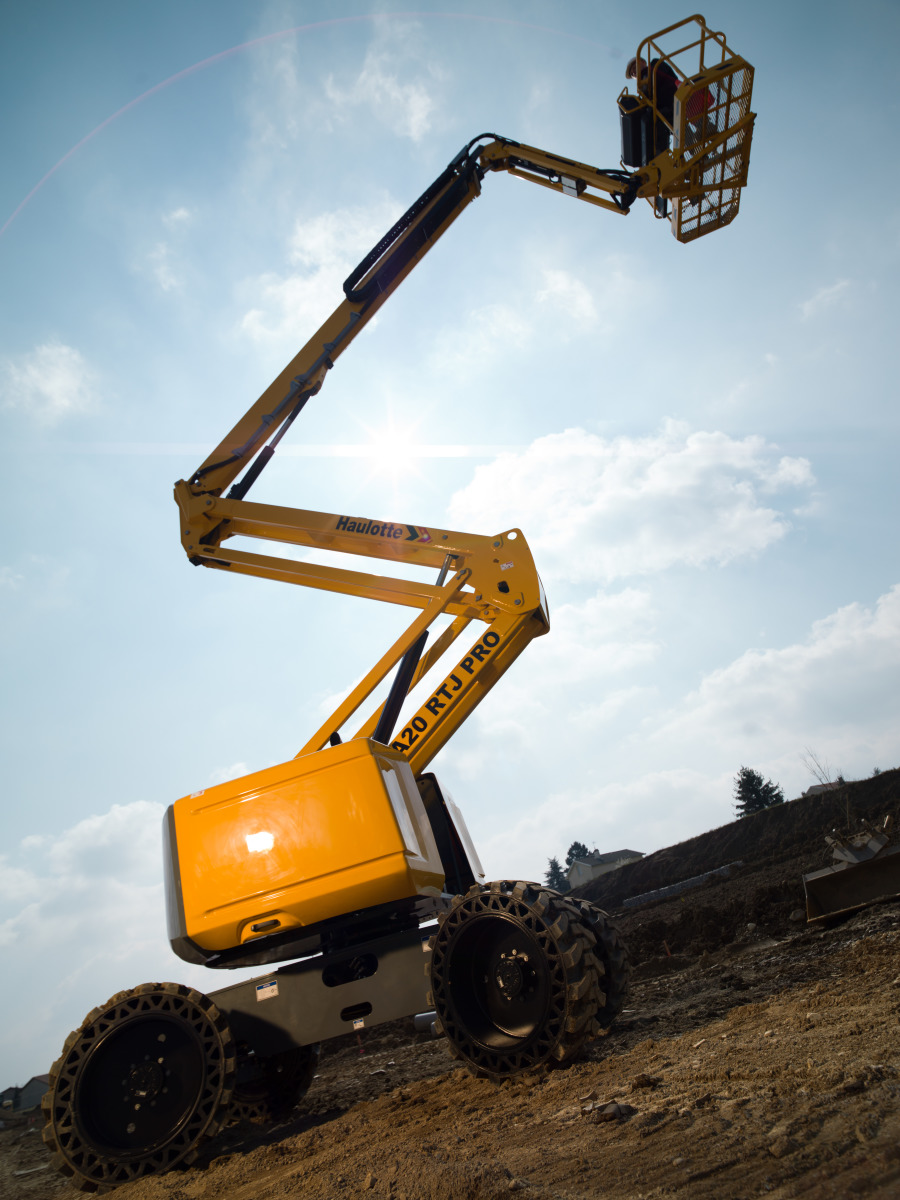

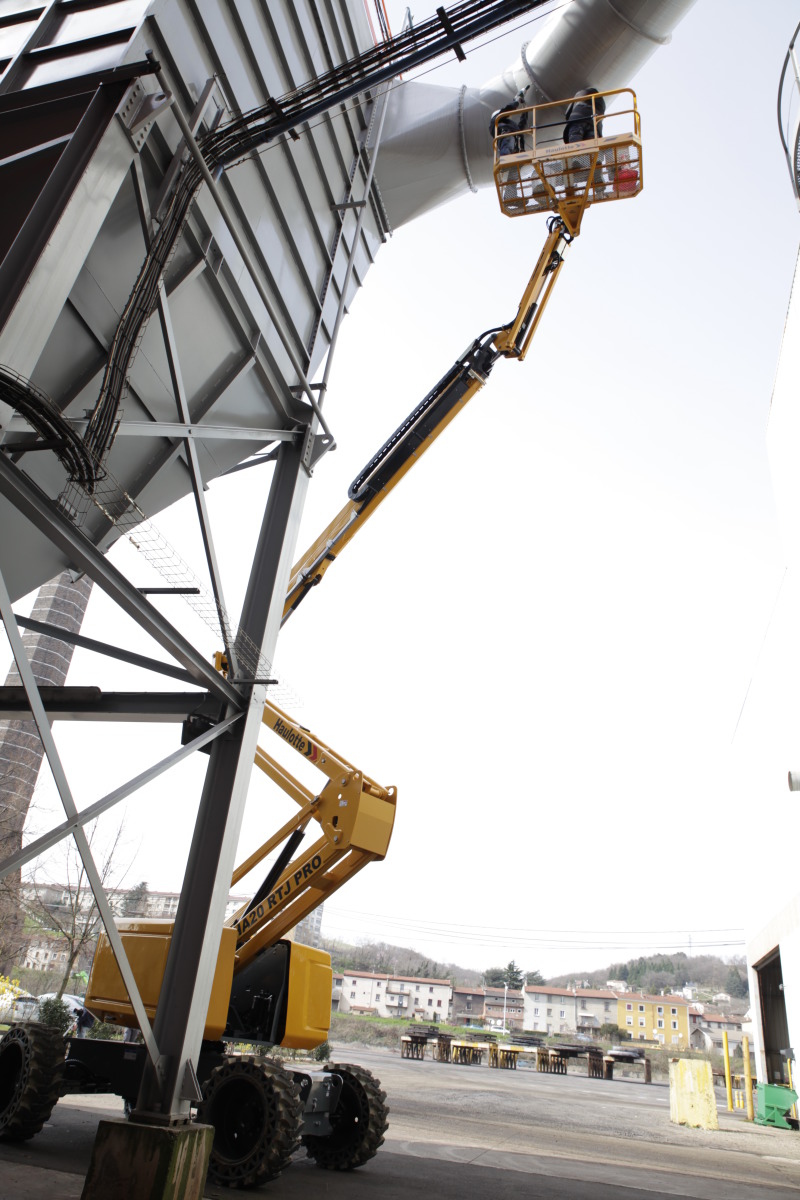

Diesel Articulating BoomsHA20 RTJ PRO

  • Diesel Articulating Booms
  • Diesel
  • Rough terrain
  • Outside use
  • Building works
  • Finishings
  • Maintenance & restoration
  • Landscaping
  • Sporting & other events
  • Performance & ease of use
  • Best lifting speed of 48 sec.
  • Industry leading working envelope with an outreach of 12.2 m
  • Fully proportional and simultaneous movements
  • Ease of transport
  • Excellent robustness
  • Rugged hoods with ergonomic handle
  • Long lasting structural design
  • Minimized total cost of ownership
  • Haulotte Activ'Screen (on board diagnostic)
  • Haulotte Stop Emission System: automatically turns the engine off & on
  • Exclusive modular basket with upper control box cover and tool tray
  • Easy access to all components
  • Best comfort and safety feeling
  • Haulotte Activ'Shield Bar 2.0

Compare

Working height 20.6 m
Platform height 18.6 m
Horizontal outreach 12.2 m
Up and over clearance 8.4 m
Lift capacity 230 kg (2 pers.)
Platform size 1.83 x 0.80 m
Length - stowed 8.8 m
Width 2.42 m
Height - stowed 2.51 m
Vertical jib rotation 140° (+ 60°/ - 80°)
Platform rotation 180° (+ 90°/ - 90°)
Turntable rotation 360° continuous
Tailswing 14.2 cm
Wheelbase 2.45 m
Ground clearance 42 cm
Tilt 5 °
Drive speed 0,5 - 5 km/h
Gradeability 45 %
Turning radius - outside 3,75 m
Power source Kohler 36.5 kW (Stage 5), Perkins 36.5 kW (LRC), Kubota 36.5 kW (China)
Weight 9 600 kg
Storage / transport length 6.5 m
Storage / transport height 2.93 m
Tyres - solid rough terrain 1025 x 365 mm
Maximum wind speed rating 45 km/h

  • Haulotte Activ'Screen
  • Haulotte Activ'Shield Bar 2.0
  • Haulotte Stop Emission System
  • Universal telematics plug
  • Rotating beacon
  • Front oscillating axle increases stability on uneven ground
  • 4 wheel drive, 4 wheel steer
  • Permanent limited slip differential
  • 4 simultaneous movements for maximum productivity
  • Modular standard basket 1.83 m x 0.80 m, drop bar entry gate
  • Upper control box protection cover and tool tray in plastic ultra-solid
  • AC power to platform 110 / 230 V
  • Travel alarm
  • Electric pump system and emergency descent
  • 12 V battery
  • Sound and light alarm for tilt and load
  • Hour meter
  • Low fuel level indicator (upper & lower control boxes)
  • Swing out engine tray for ease of maintenance

  • Glazier pack
  • Non-marking tires
  • Biodegradable hydraulic oil
  • Hot weather kit: hydraulic oil cooler + hydraulic oil
  • Cold weather kit: - 10°C / - 25°C
  • Flashing light
  • Power to platform 110 / 230 V (with or without circuit-breaker 30 mA)
  • 55 W working light
  • Air-line to platform 6.5 mm inner diameter
  • Hydraulic generator Dynaset 3.5 Kw
  • Lateral swing door entry gate
  • Large modular basket 2.44 m x 0.91 m
