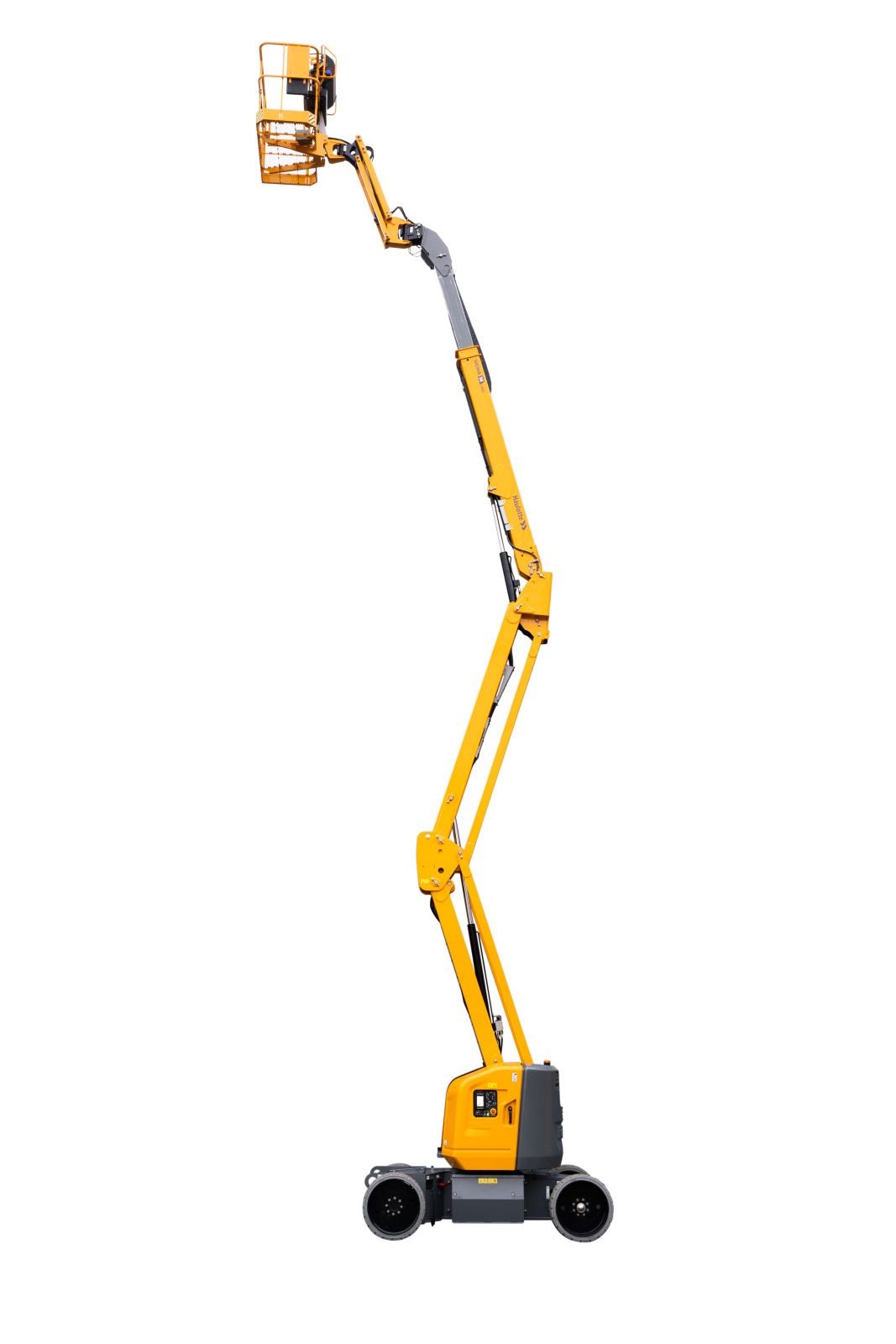

Electric Articulating BoomsSIGMA 16 PRO

  • Electric Articulating Booms
  • Electric
  • Even ground
  • Inside and outside use
  • Finishings
  • Maintenance and restoration
  • Landscaping

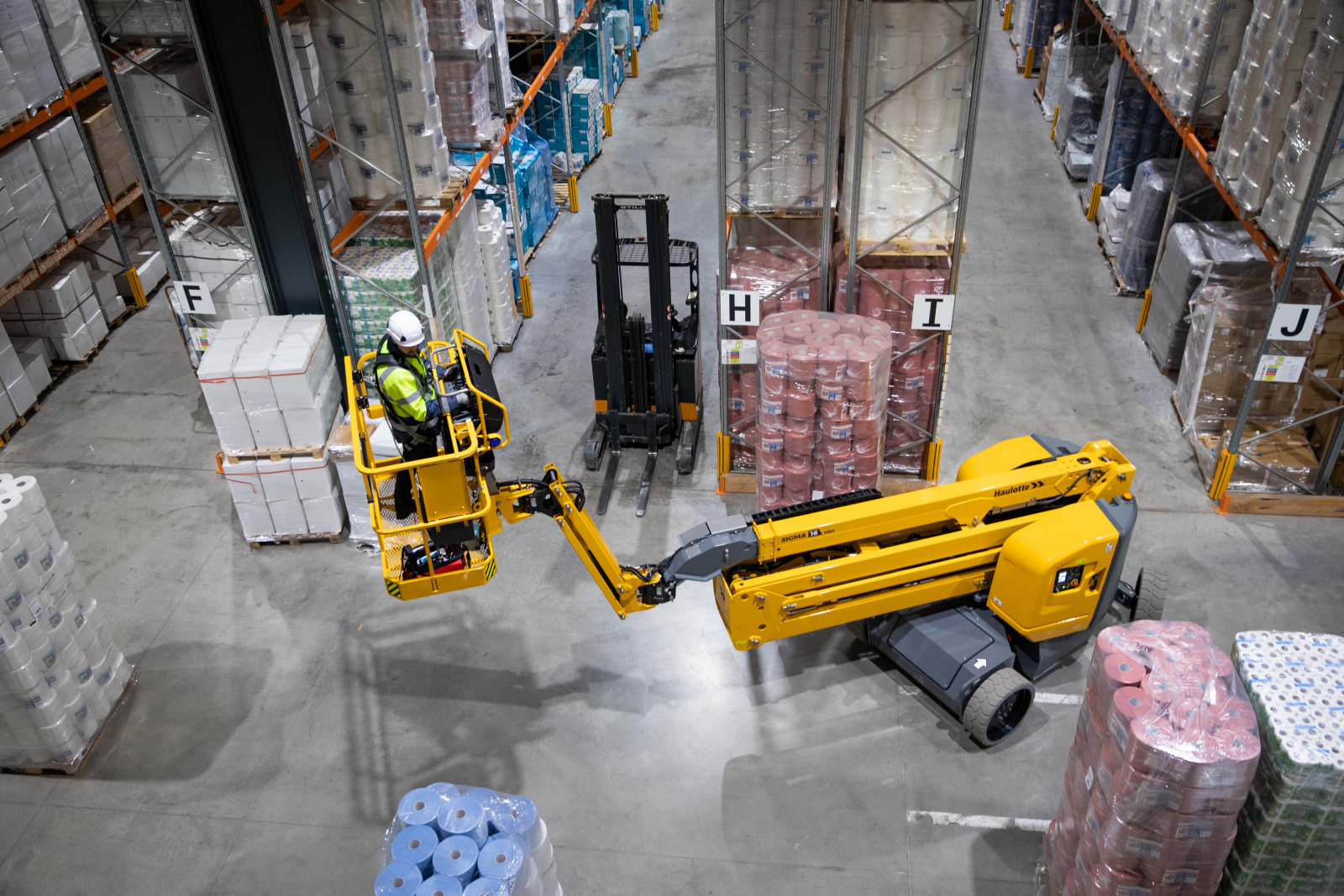

  • Logistics / Retail / Industry
  • Sporting and other events
  • Boost your productivity
  • Best working envelope in the market with the longest outreach and highest up & over clearance
  • Simultaneous movements
  • Load capacity of 230 kg & two operators
  • Versatility indoor & outdoor on firm ground
  • Move with agility
  • Zero tailswing and tight turning radius
  • Jib with horizontal rotation provides access to the most inaccessible places (PRO model)
  • Proportional, precise & smooth movements
  • Reliable serviceability
  • Haulotte Activ'Energy Management takes care of your battery
  • Haulotte Activ’Screen: on-board configuration & diagnostic interface
  • Work safely
  • Haulotte Activ'Shield Bar *
  • Haulotte Activ'Lighting System *

Working height 15.7 m
Platform height 13.7 m
Horizontal outreach 8.05 m
Up and over clearance 7.4 m
Platform size 1.20 x 0.8 m
Length 6.65 m
Width 1.75 m
Height - stowed 2 m
Vertical jib rotation -65° /+65°
Platform rotation -85° /+85°
Turntable rotation 355 °
Wheelbase 2 m
Ground clearance 17 cm
Tilt 4°/4
Proportional drive speed 5 km/h
Gradeability 25 %
Turning radius - outside 3.9 m
Tyres - non marking 676 x 231 mm
Weight 6 950 kg
Horizontal jib rotation -55° /+55°
Tailswing 0 cm
Lift capacity 230 kg
Storage / transport length 6.65 m
Batteries 8 x 6 V - 435 Ah (C20)
Maximum wind speed rating 45 km/h
  • Jib with horizontal rotation (PRO model)
  • 2 wheel drive / 2 wheel steer
  • AC motors
  • 48V battery pack
  • Haulotte Activ'Energy Management: smart battery management system

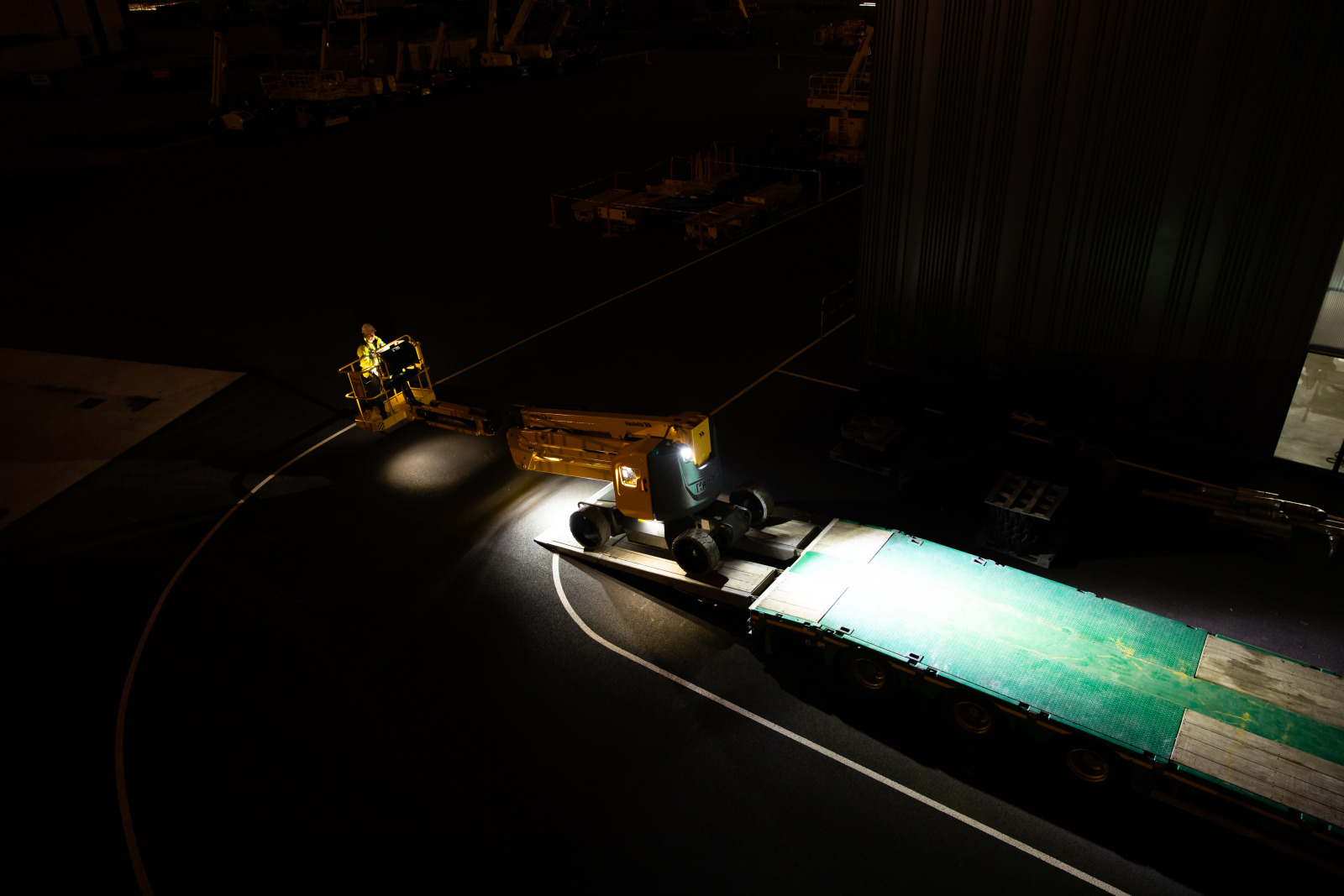

  • Haulotte Activ'Lighting System for safe loading in low visibility conditions *
  • Haulotte Activ'Shield Bar 2.0 *
  • Haulotte Activ'Screen: embedded diagnostic system, with color screen
  • Upper control box cover *
  • Tool tray *
  • 1.2 m wide basket
  • Drop bar entry
  • Large solid, non-marking industrial tires
  • AC power to basket
  • Motion alarm
  • Lockable battery circuit breaker
  • Side swing door + front drop bar
  • 1.5 m basket
  • Basket plug (110 / 230 V)
  • Haulotte Activ'Energy Management : manual or automatic battery water-filling system
  • Cold countries hydraulic oil
  • Fluorescent tube holder
  • Cones holder
  • Telematics solutions
  • USB plug
