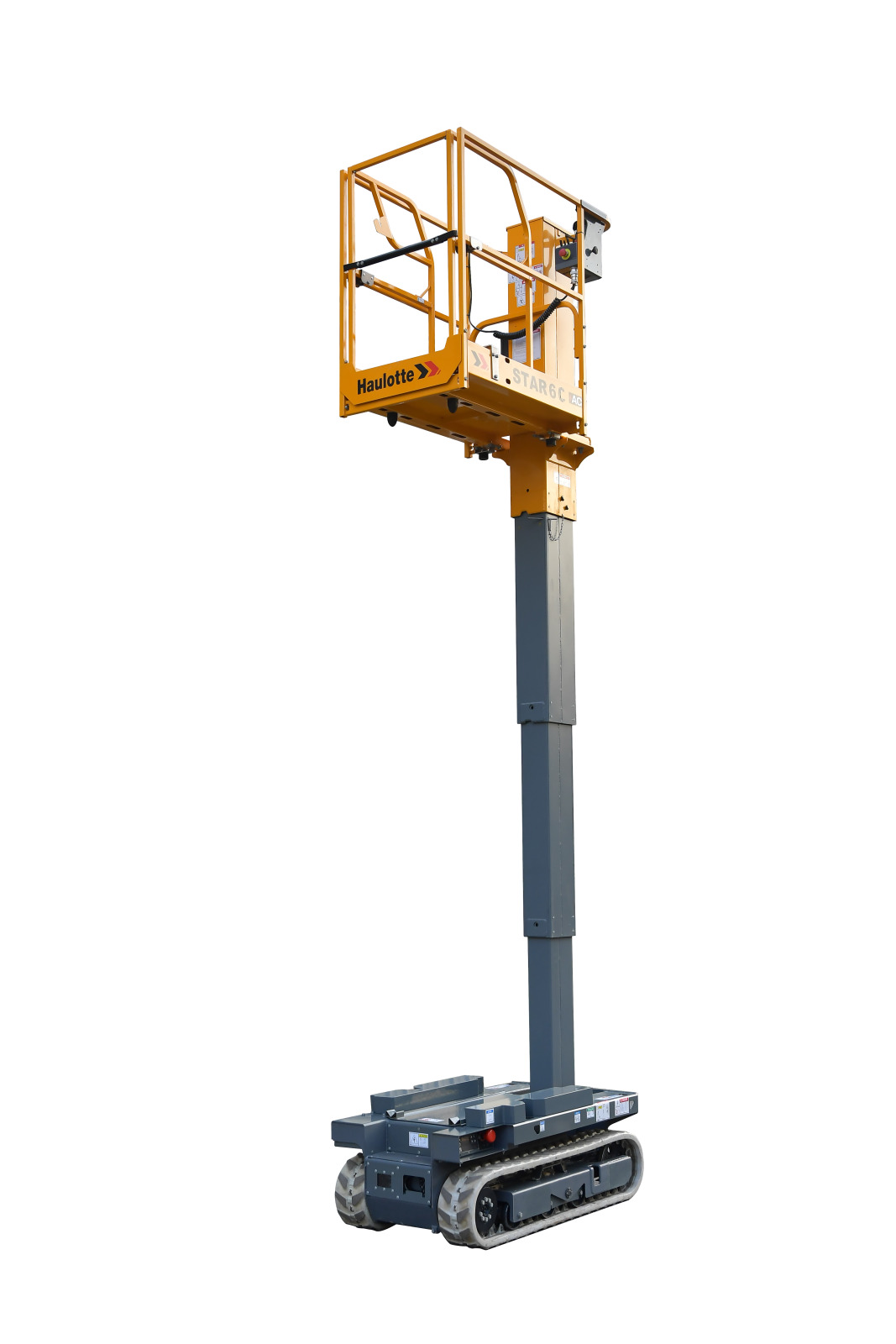

Vertical masts Star 6 CRAWLER

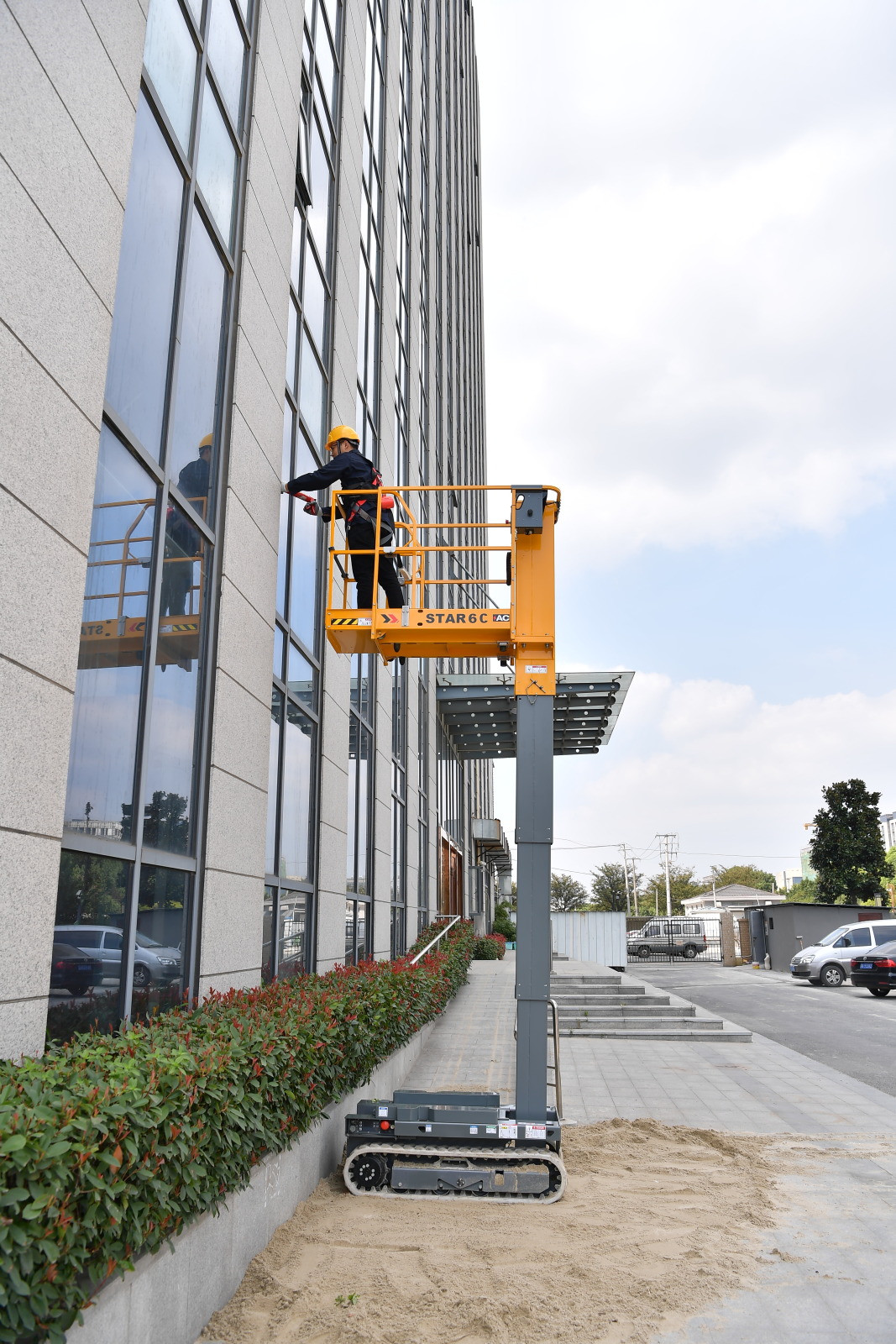

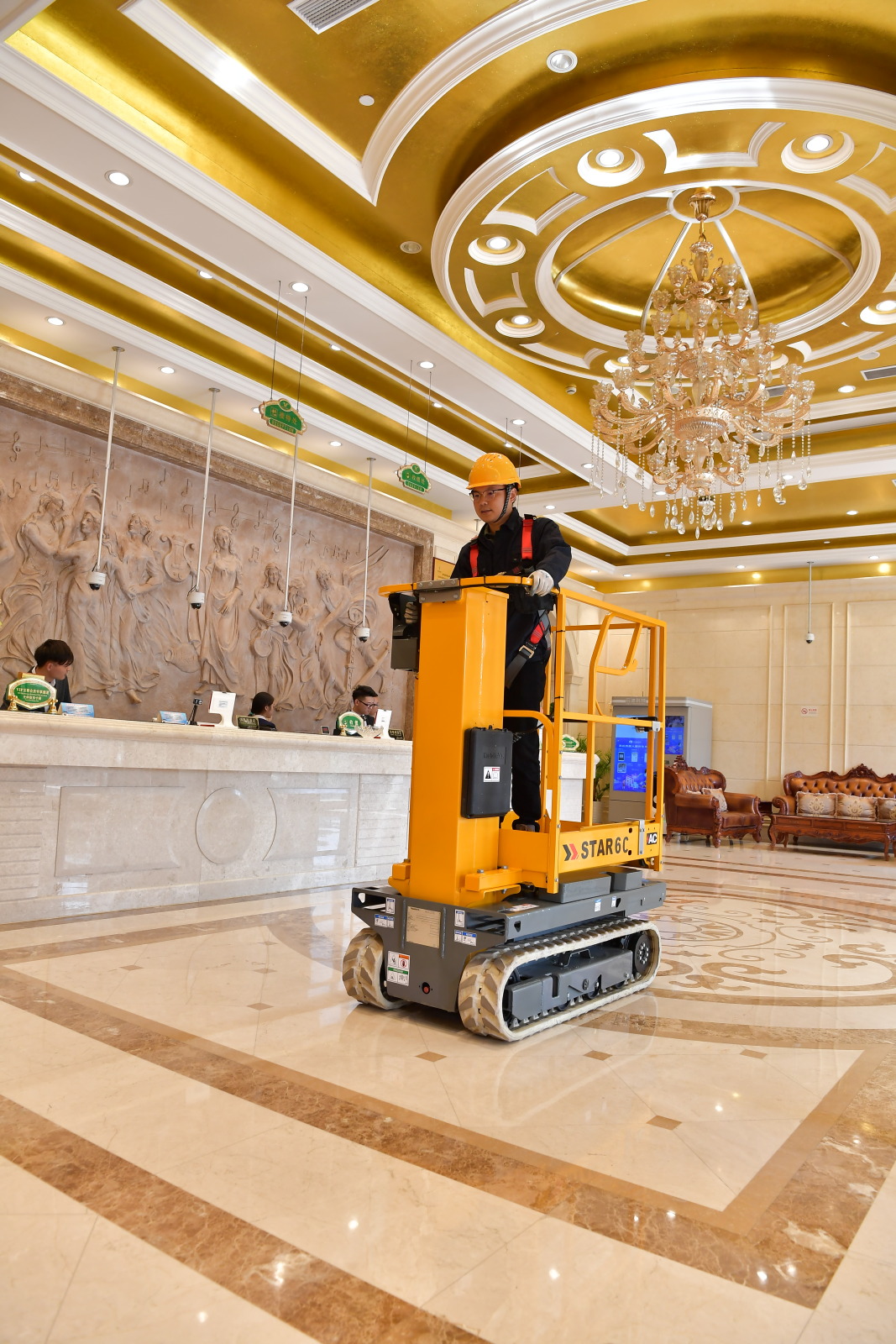

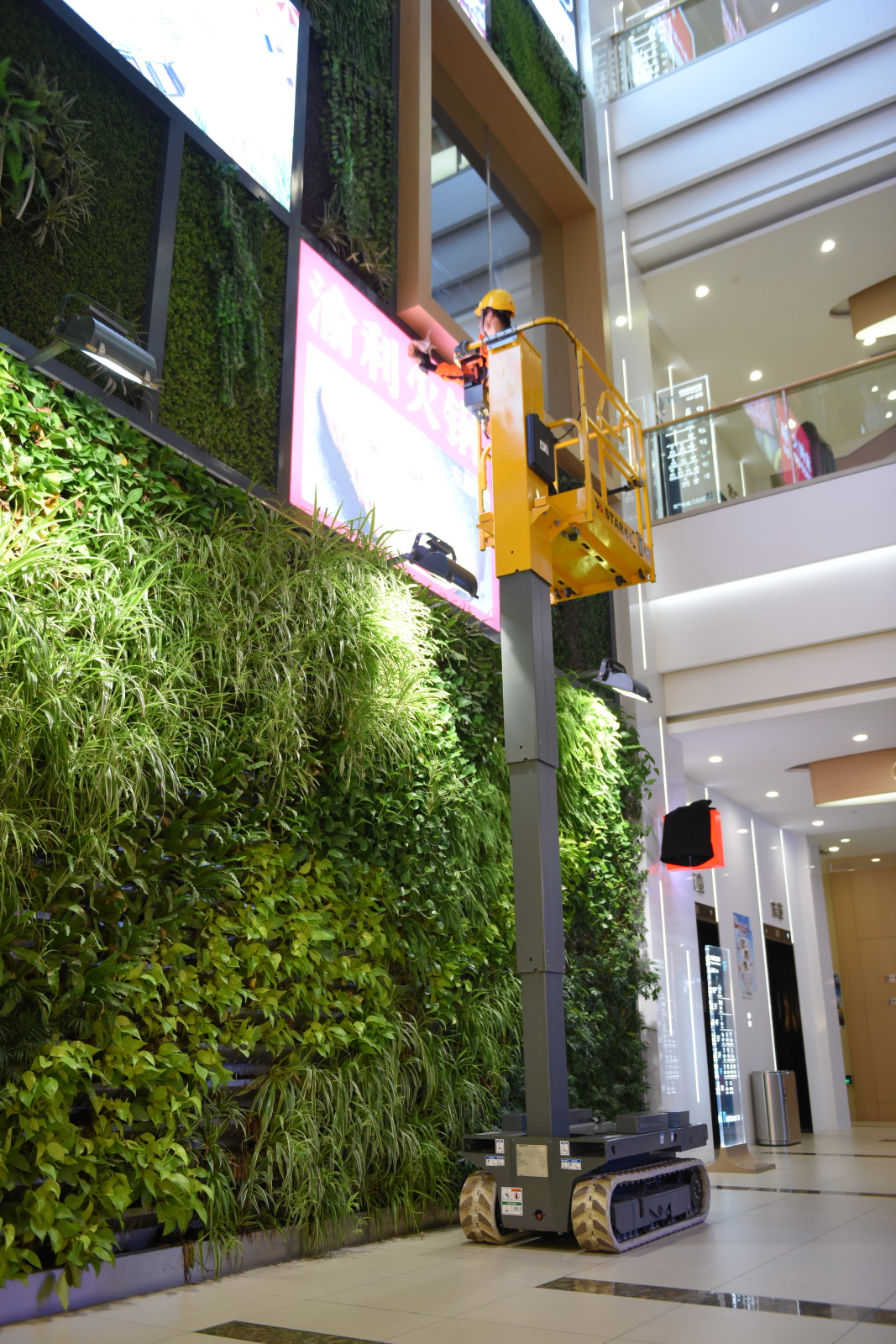

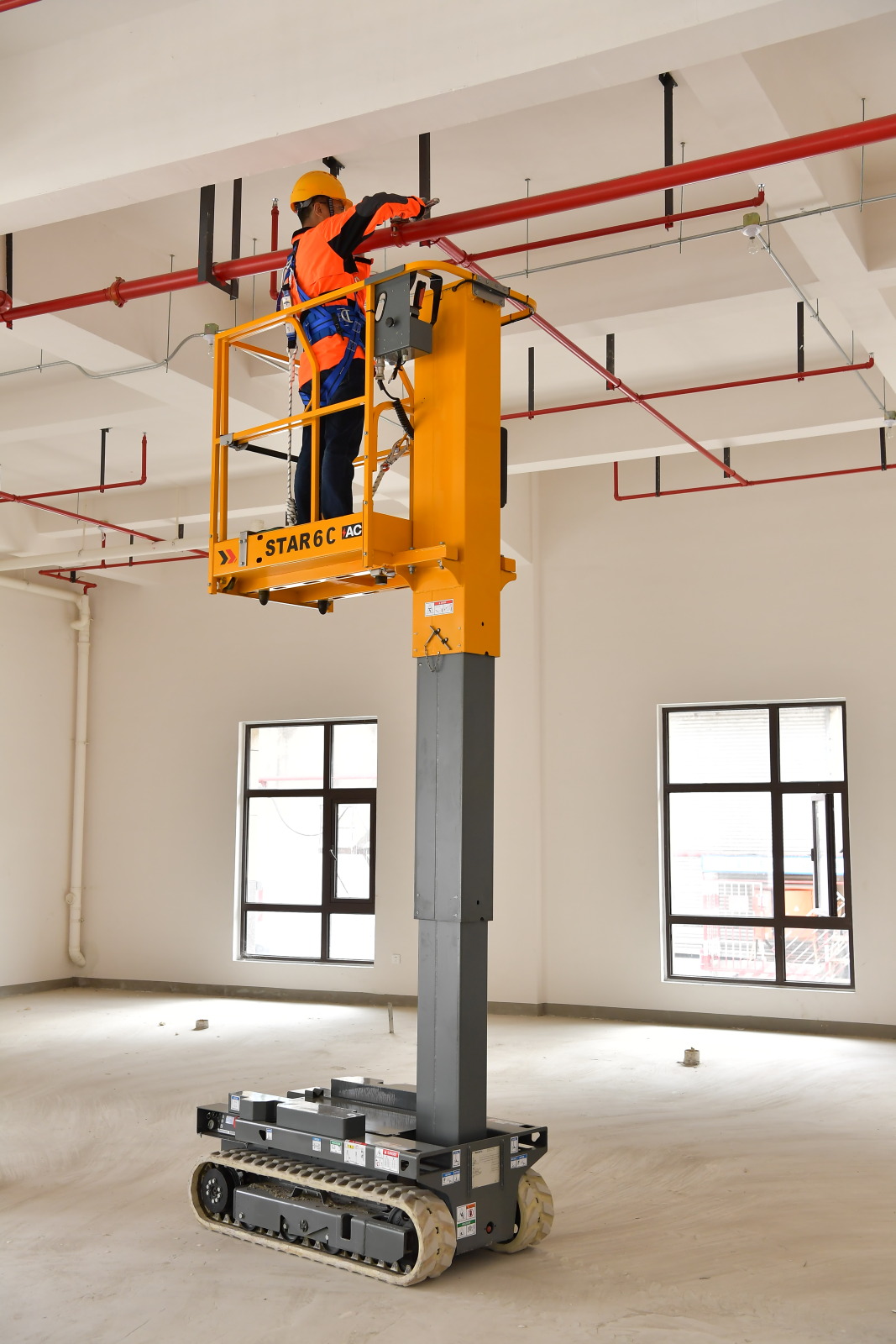

Agile, robust, easy to use and maintain, STAR vertical masts are intended for use in multiple applications. Equipped with rubber tracks, the STAR 6 Crawler enables operators to cross any terrain to access their work area. The STAR 6 Crawler tracks distribute the weight over a large surface area. The pressure on the ground is reduced, enabling the machine to crawl over sensitive floors: marble, tile, carpet, etc

Product characteristics

Indoor

Indoor

Even ground

Even ground

Electric

Electric

Application fields

Finishings

Finishings

Maintenance & Restoration

Maintenance & Restoration

Sporting & other events

Sporting & other events

Star 6 CRAWLER

Presentation

  • Go everywhere
  • Great agility in confined working area
  • Optimal total cost of ownership

Specifications

Go everywhere

Go everywhere

  • High-precision driving & smoothness
  • Intermediate supporting wheels in crawler track system

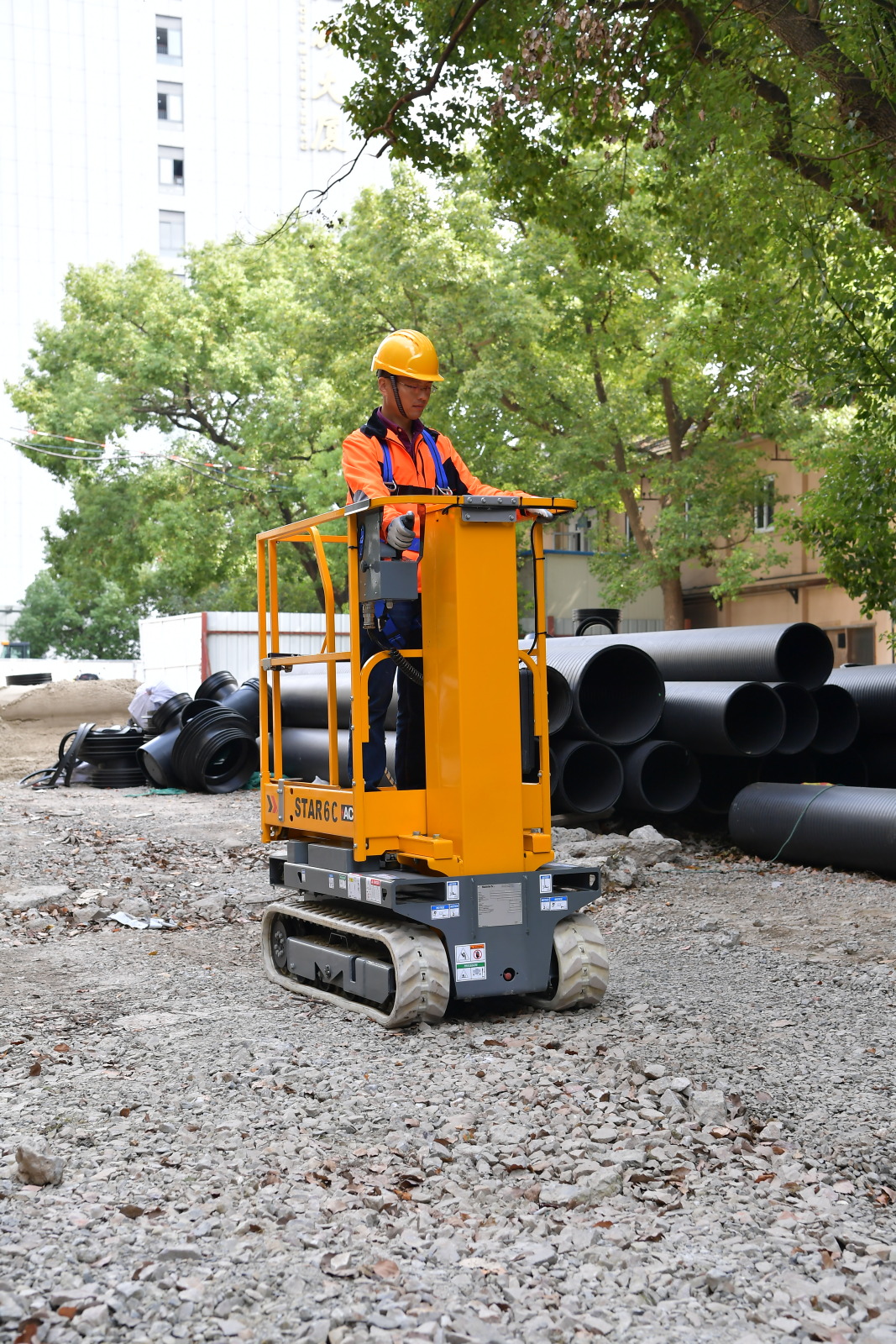

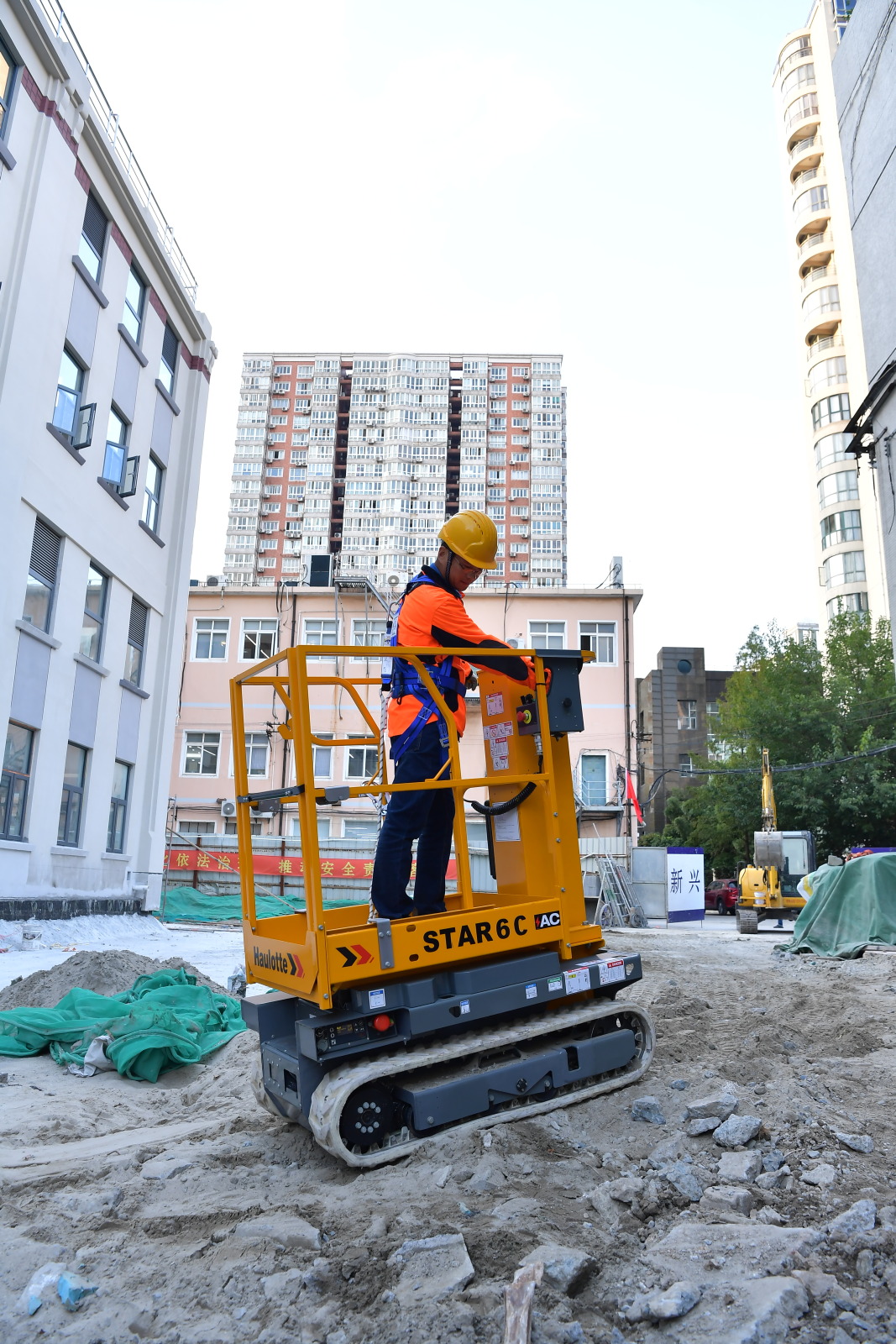

  • Ability to go through uneven grounds and water puddles
  • Dedicated forklift pockets
Great agility in confined working area

Great agility in confined working area

  • Compact machine: only 0.76 m width
  • Low turning radius
  • + 0.4 m platform extension
  • Platform with dedicated anti-slip step
  • Ergonomic & intuitive platform control box with battery level indicator
Optimal total cost of ownership

Optimal total cost of ownership

  • 3-stage-cylinder mast: no chain & no cable
  • Direct electric drive brushless AC motors
  • Easy access to components (hoods and dedicated hand pump)
  • Onboard diagnostic: Haulotte Activ’Screen

Working height 5.8 m
Platform height 3.8 m
Horizontal outreach 0.4 m extension
Lift capacity - inside 200 kg (2 pers.)
Lift capacity - outside 200 kg (1 pers.)
Platform size 0.74 m x 1.0 m
Platform size with extension 0.74 m x 1.44 m
Length 1.44 m
Width 0.76 m
Height - stowed 1.72 m
Ground clearance 6 cm
Drive speed proportional 0.8 - 2.2 km/h
Turning radius - outside 1.25 m
Tilt alarm 1.5° / 3°
Gradeability 25 %
Max driveable platf. height 0.7 m
Rubber tracks - non marking 180 x 72 x 43
Power source 2 x 12 V - 115 Ah (C5)
Weight 1175 kg
Hydraulic system capacity 5 l
Star 6 CRAWLER
Star 6 CRAWLER

  • Motion movement only in stowed position
  • 24 V electric drive brushless AC motors
  • 20 A battery charger
  • 2x12 V - 115 Ah maintenance-free batteries
  • Battery level indicator
  • Haulotte Activ'Screen
  • Fork lifting pockets
  • Hoisting and lifting eyes
  • Door entry gate with lock
  • 2 drive speed
  • 2 steering and driving non marking rubber tracks
  • Hourmeter
  • Horn
  • Travel alarm
  • Emergency stop at cage and ground level
  • Lowering system
  • Handing pump for platform elevation
  • Control stations at cage and ground level
  • Mobile upper control box
  • 2 towing hooks
  • Platform extension deck + 0.4 m

  • Lockable battery circuit breaker
  • Upper control box protection plastic cover
  • Joystick protection
  • Deadman pedal
  • Flashing light
  • Hydraulic oil for cold countries
  • Biodegradable oil
